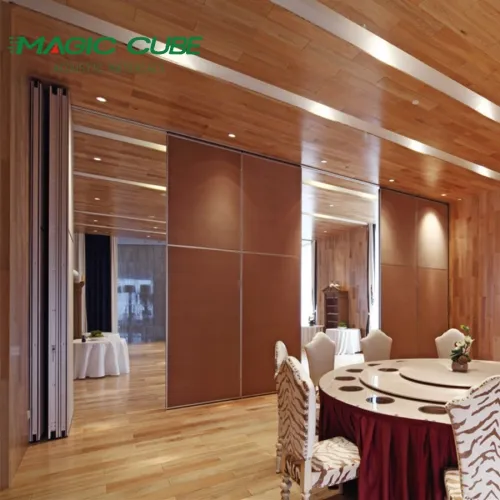

Hotel operable movable partition design

$89.99 - 129.99 /Square Meter
Sound-absorbing board varieties:
Share:
  • Product Description
Overview
Product Attributes

Model No.MQ-PARTITION

BrandMAGIC CUBE

Warranty Service5 Years

After-sales ServiceOnline Technical Support, Return And Replacement, Other

Engineering Solution CapabilityTotal Solution For Projects, Others

Application ScenarioHotel, Gym, Hall, Mall, Office Building, Home Office, Home Bar

Design StyleContemporary, Scandinavian, Eclectic, Victorian, Traditional, Postmodern, Southwestern, Japanese, Modern, Mediterranean, Craftsman, Chinese, Minimalist, Coastal, Mid-Century Modern, French, Industrial, Rustic, Transitional, Midcentury, European, Tropical, Farmhouse, Asian

Place Of OriginChina

Model NO.Movable Partitions

TypeMelamine MDF Panel, Fireproof PVC Board, Fabric

ApplicationOffice, Hotel Banquet Hall, etc.

Main MaterialAluminum Frame and Track

Soundproof MaterRock Rool , Glass Wool

Soundproof Stc40dB-50dB

DimensionsW700-1200mm, H2000-5200mm, Thickness 80-110mm

Stacking WayCentre Partiting; Side Parking

SpecificationCustomization

Transport PackageCrate/Polywood MDF Board

Supply Ability & Additional Information

PackagingCarton Paper Packaging, MDF Batten Cover Corners

Productivity5000sq/Month

TransportationOcean

Place of OriginCHINA

Supply Ability5000sq/Month

CertificateCE

HS Code76101000

PortSHENZHEN,GUANGZHOU

Payment TypeT/T,Others

IncotermFOB,CIF,EXW

Packaging & Delivery
Selling Units:
Square Meter
Package Type:
Carton Paper Packaging, MDF Batten Cover Corners
Product Description




When choosing the detachable partition wall of the hotel, it is necessary to use fresh wallpaper as a decorative surface or a glass detachable partition wall with better light transmittance to adjust people's psychological depression, and adjust the mentality through the decoration of the movable partition through the indoor environment, so as to maintain a good attitude in this way. This is also the basic foothold for the hotel to adopt activity partitions.



Specifications

Type 65 type, 80 type, 100 type, ultra high 100 type.
Finish melamine MDF panel, fireproof PVC board, fabric(leather) wrapped MDF panel, fabric(leather) wrapped fiberglass panel
Density  28~32kg/m²
STC 40db-50db
Dimensions width 700~1200mm, height 2000~5200mm, thickness 80~110mm, rail load 450kg
Structure 25mm PAR fiberglass panel(24kg/m2 ) , 9mm base panel, 6063-T6 aluminum sectional material, durable NBR modified rubber for sealing


Product Structure


Conference Room Fireproof Material Automatic Movable Acoustic Walls for Office or Hall
Conference Room Fireproof Material Automatic Movable Acoustic Walls for Office or Hall



Panel Suspension  Top hunge system without the need for a floor track.
Panel Width Each panel 600mm-1200mm.
Track Aluminum OR Steel Track
Roller on panel Single or double  roller.
Panel Frames  Heavy-duty steel-gusseted aluminum inner frames reinforced with  full height.
Top&bottm seals Top and bottom pressure retractable seals ensure effortless moved and locked.
Module 700mm - 1200mm maximum.
Panel stacking Numerous panel stacking options for complete flexibility.
Panel face  MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard




Conference Room Fireproof Material Automatic Movable Acoustic Walls for Office or Hall

Ultra high 100 type

    Ultra-high folding partition wall is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high folding partition wall can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.

Features

  • Load bearing of each meter is more than 2000 KGS
  • Each pulley bearing more than 1500 KGS
  • Easily moved even being pushed at waist-high
  • The panel can make a turn automatically as sliding in the straight rail


Conference Room Fireproof Material Automatic Movable Acoustic Walls for Office or Hall

Conference Room Fireproof Material Automatic Movable Acoustic Walls for Office or Hall

Stacking Ways

Conference Room Fireproof Material Automatic Movable Acoustic Walls for Office or HallApplications

Conference Room Fireproof Material Automatic Movable Acoustic Walls for Office or Hall
Conference Room Fireproof Material Automatic Movable Acoustic Walls for Office or Hall
Conference Room Fireproof Material Automatic Movable Acoustic Walls for Office or Hall
Conference Room Fireproof Material Automatic Movable Acoustic Walls for Office or Hall


Conference Room Fireproof Material Automatic Movable Acoustic Walls for Office or Hall

The specific details of ultra-high operable moveable partition products

Ultra-high screen is a kind of movable screen, which can also be called the maximum heavy-duty ultra-high temperature screen of 16 meters. It is also very easy to push and pull the ultra-high type operable moveable partition. Used in large-scale banquet events, the banquet hall often becomes a veritable "wall" in the conference hall. The partitions of this series of activities are intermittent, used in restaurants, training rooms and small conference rooms in modern hotels. It can also be used as a frequently used board for stickers or Hanging paintings can also be used as ordinary paintings or hanging paintings. Various open doors can also promote various mobile office exhibitions, which play a role in preventing theft.

The applicable height of space separation is 7 meters to 16 meters, and the Sound Insulation effect of high compartments is as high as 53 decibels. It can be used in large multi-purpose halls, hotel banquet halls, conference and exhibition centers, gymnasiums and auditoriums and other tall places.

The ultra-high movable partition walls are all surrounded by double-layer aluminum alloy frames. It is necessary to adopt various methods such as oxidation and electrophoresis according to customer requirements.

The heavy-duty follow-rail used for ultra-high movable partitions, the number of times the rolling suspension wheel of the model can slide up to 100,000 times, has good technology in the partition industry. The applicable height is 8m-17m. The maximum load-bearing of the rail is 1250kg/m, and the maximum sound insulation coefficient of the partition wall is 60dB. Generally, it can be widely used in airports, large exhibition halls and other large places.



There are also similarities between movable partition walls and traditional fixed screen partitions, that is, the functional characteristics of blocking sight lines and separating space, but the effect of dividing space by movable partition walls is more significant than that of traditional ones, which can be used anytime, anywhere. According to different actual needs, a number of different areas are divided to use the space. Indoor places, such as temporary reception rooms or conference rooms, can be enclosed by movable partition walls, and it does not affect the normal work around, which is convenient and fast, making the indoor space more comfortable. Rich and diverse. When it is not needed, it can be stored and moved to the storage room, so as not to affect the viewing and functionality of the overall environment.

Product Categories : Hall Sliding Partition
