Model No.: MQ-PARTITION
Brand: MAGIC CUBE
Warranty Service: 5 Years
After-sales Service: Online Technical Support, Return And Replacement, Other
Engineering Solution Capability: Total Solution For Projects, Others
Application Scenario: Hotel, Mall, Workshop, Hall, Gym, Home Office
Design Style: Contemporary, Postmodern, Craftsman, Traditional, Mediterranean, Mid-Century Modern, Coastal, Transitional, Modern, Minimalist, Rustic, Tropical, Industrial, European, Midcentury, Asian, Victorian, Eclectic, Japanese, Farmhouse, Southwestern, Chinese, Scandinavian, French
Place Of Origin: China
Model NO.: Movable Partitions
Type: Melamine MDF Panel, Fireproof PVC Board, Fabric
Application: Office, Hotel Banquet Hall, etc.
Main Material: Aluminum Frame and Track
Soundproof Mater: Rock Rool , Glass Wool
Soundproof Stc: 40dB-50dB
Dimensions: W700-1200mm, H2000-5200mm, Thickness 80-110mm
Stacking Way: Centre Partiting; Side Parking
Open Way: Sliding Partition
Ransport Package: Carton Paper Packaging, MDF Batten Cover Corners
Packaging: Carton Paper Packaging, MDF Batten Cover Corners
Productivity: 5000sq/Month
Transportation: Ocean
Place of Origin: CHINA
Supply Ability: 5000sq/Month
Certificate: CE
HS Code: 76101000
Port: SHENZHEN,GUANGZHOU
Payment Type: T/T,Others
Incoterm: FOB,CIF,EXW
The installation process of the detachable partition wall:
1. Positioning measurement. When installing, professionals will measure according to the indoor floor plan, release the control line, and then guide the position line to the roof, and then finalize the internal marking and construction details.
2. Installation of steel structure and fixed parts. The steel structure is a load-bearing member linking the ceiling and the track, it is very important, and even involves the safety of the entire partition system. In this step, it is necessary to weld the fixed parts to death according to the requirements of the construction drawing, and at the same time carry out anti-rust treatment on all the metal parts.
Install the track. The fixing method of the suspended track is to install a pulley on the top surface of the partition wall door panel and connect it with the upper suspended track. The track of the light detachable partition wall is fixed on the top plank or the steel frame with wood screws or counterscrew. The heavy-duty Movable Partition Wall is fixed on the steel frame by screw or world welding.
| Type | 65 type, 80 type, 100 type, ultra high 100 type. |
| Finish | melamine MDF panel, fireproof PVC board, fabric(leather) wrapped MDF panel, fabric(leather) wrapped fiberglass panel |
| Density | 28~32kg/m² |
| STC | 40db-50db |
| Dimensions | width 700~1200mm, height 2000~5200mm, thickness 80~110mm, rail load 450kg |
| Structure | 25mm PAR fiberglass panel(24kg/m2 ) , 9mm base panel, 6063-T6 aluminum sectional material, durable NBR modified rubber for sealing |
| Panel Suspension | Top hunge system without the need for a floor track. |
| Panel Width | Each panel 600mm-1200mm. |

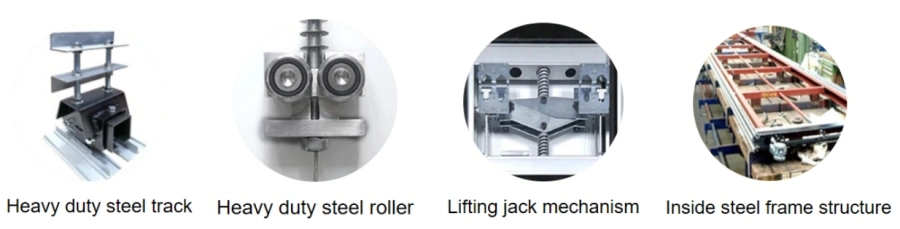

| Track | Aluminum OR Steel Track |
| Roller on panel | Single or double roller. |
| Panel Frames | Heavy-duty steel-gusseted aluminum inner frames reinforced with full height. |
| Top&bottm seals | Top and bottom pressure retractable seals ensure effortless moved and locked. |
| Module | 700mm - 1200mm maximum. |
| Panel stacking | Numerous panel stacking options for complete flexibility. |
| Panel face | MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc. |
| Finishes | Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard |

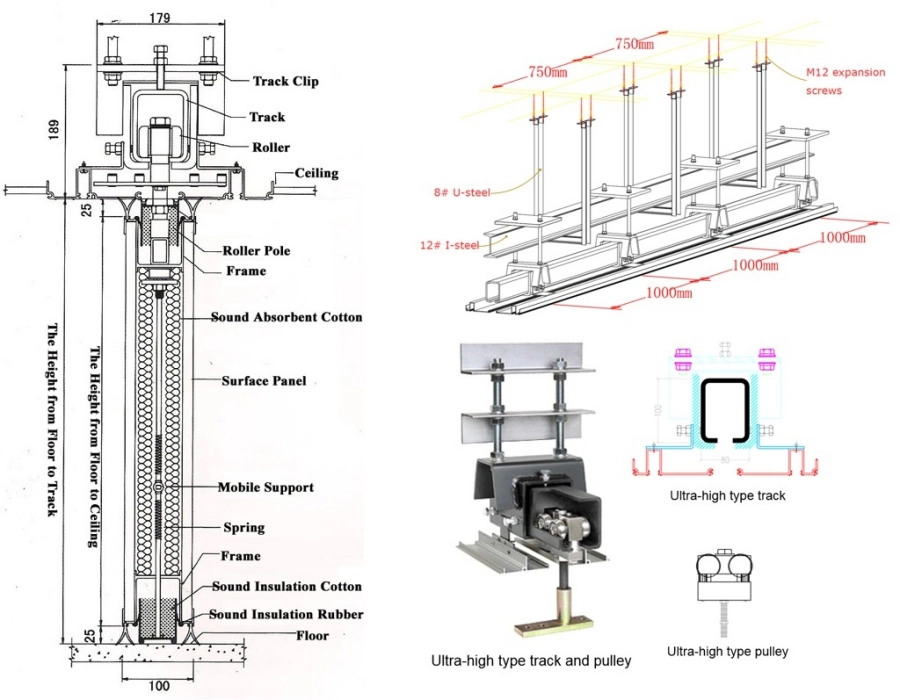

Ultra high 100 type
Ultra-highfolding partition wall is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high folding partition wall can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.
Features
Stacking Ways
Applications
Product Categories : Hall Sliding Partition
