solid modern design decorative patition wall

$89.99 - 129.99 /Square Meter
Payment Type:
T/T
Incoterm:
FOB,CIF,EXW
Min. Order:
20 Square Meter
Transportation:
Ocean
Port:
SHENZHEN,GUANGZHOU
Share:
  • Product Description
Overview
Product Attributes

Model No.MQ-PARTITION

BrandMAGIC CUBE

Warranty Service5 Years

After-sales ServiceOnline Technical Support, Return And Replacement

Engineering Solution CapabilityTotal Solution For Projects

Application ScenarioHotel, Villa, Hall, Gym, Home Office, Office Building

Design StyleContemporary, Traditional, Modern, Scandinavian, Postmodern, Eclectic, Victorian, Southwestern, Mediterranean, Minimalist

Place Of OriginChina

Model NO.series 85 partition walls

ColorYellow,red, the original wood color

Condition NewNew

Thickness85mm

Supply Ability & Additional Information

PackagingCarton Paper Packaging, MDF Batten Cover Corners

Productivity5000sq/Month

TransportationOcean

Place of OriginCHINA

Supply Ability5000sq/Month

CertificateCE

HS Code76101000

PortSHENZHEN,GUANGZHOU

Payment TypeT/T

IncotermFOB,CIF,EXW

Packaging & Delivery
Selling Units:
Square Meter
Package Type:
Carton Paper Packaging, MDF Batten Cover Corners
Product Description

Moveable Wall are generally used in public workplaces such as banquet halls and exhibitions. It must be possible to create an excellent customer's activity space at the same time according to the actual situation, so that there are many business-friendly functions that can be next door. In order to avoid the intermittent waiting of scratches or back shadows during transportation, After the Moveable Wall is sent to the installation site, finishing processing will be carried out.


Specifications

Type 65 type, 80 type, 100 type, ultra high 100 type.
Finish melamine MDF panel, fireproof PVC board, fabric(leather) wrapped MDF panel, fabric(leather) wrapped fiberglass panel
Density  28~32kg/m²
STC 40db-50db
Dimensions width 700~1200mm, height 2000~5200mm, thickness 80~110mm, rail load 450kg
Structure 25mm PAR fiberglass panel(24kg/m2 ) , 9mm base panel, 6063-T6 aluminum sectional material, durable NBR modified rubber for sealing

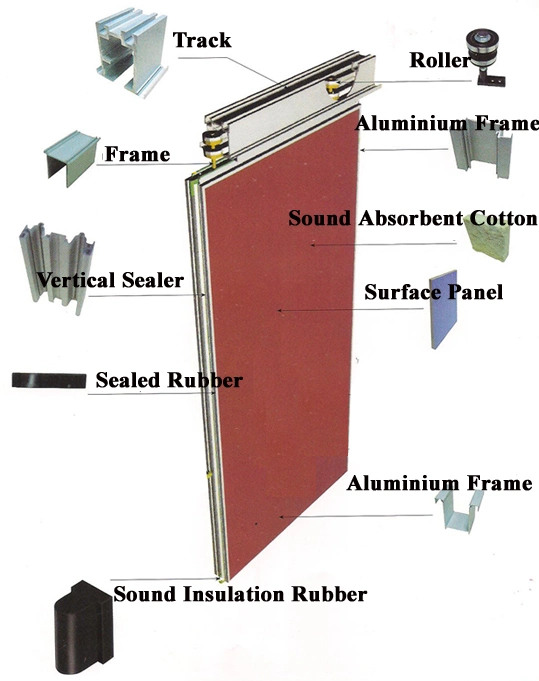

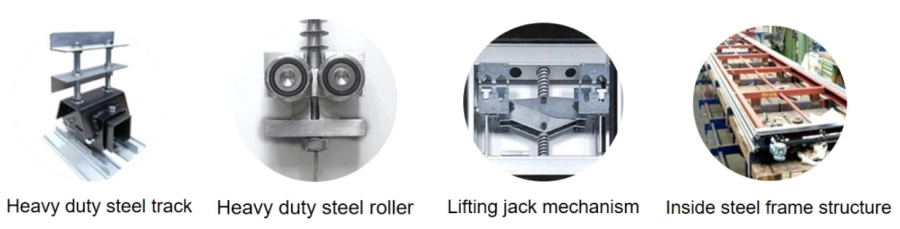

Product Structure


Automatic Room Dividers Customization Movable Partition Wall Motorized Sliding Walls for Office
Automatic Room Dividers Customization Movable Partition Wall Motorized Sliding Walls for Office

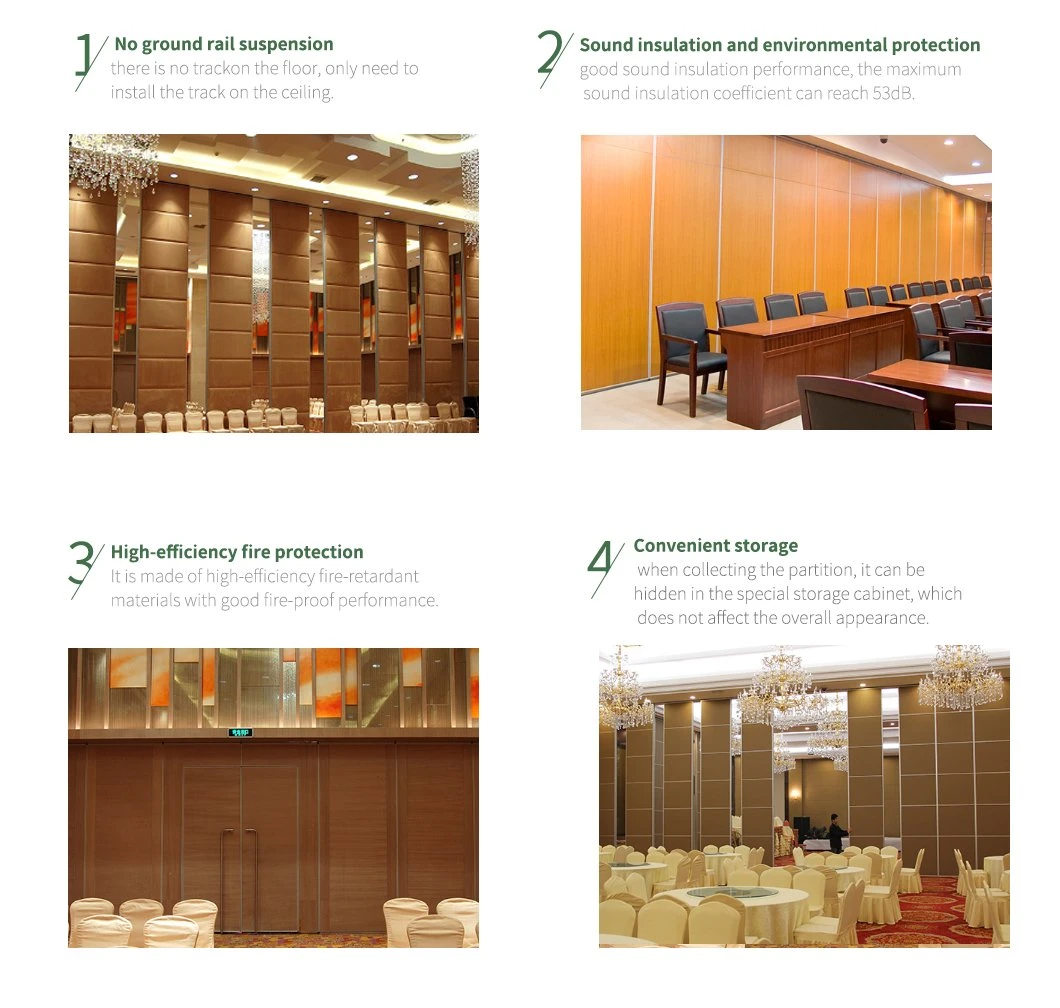

Panel Suspension  Top hunge system without the need for a floor track.
Panel Width Each panel 600mm-1200mm.
Track Aluminum OR Steel Track
Roller on panel Single or double  roller.
Panel Frames  Heavy-duty steel-gusseted aluminum inner frames reinforced with  full height.
Top&bottm seals Top and bottom pressure retractable seals ensure effortless moved and locked.
Module 700mm - 1200mm maximum.
Panel stacking Numerous panel stacking options for complete flexibility.
Panel face  MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard




Automatic Room Dividers Customization Movable Partition Wall Motorized Sliding Walls for Office

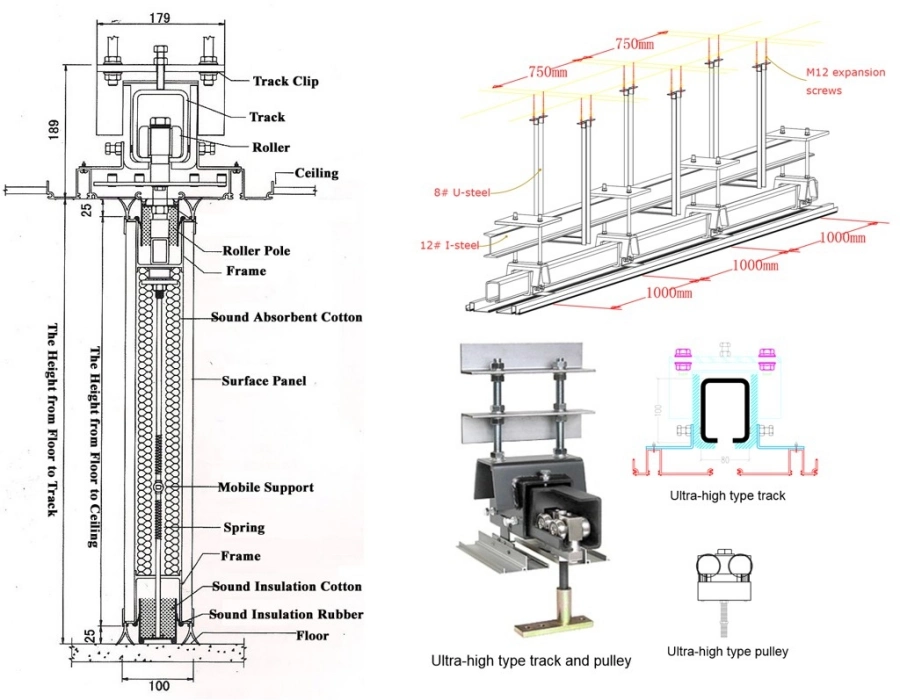

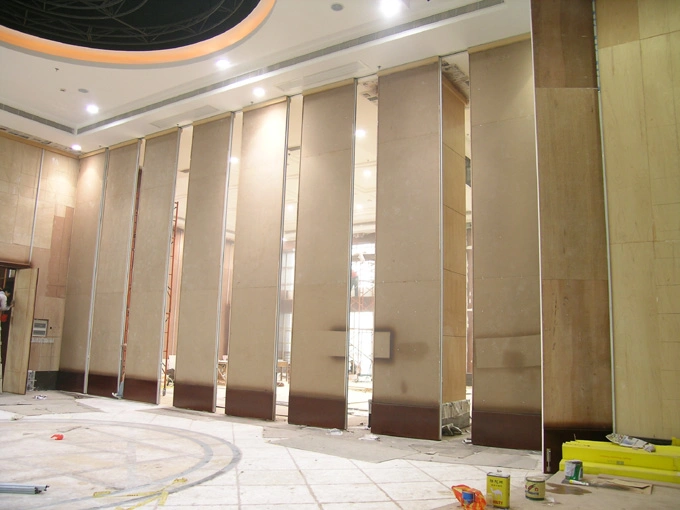

Ultra high 100 type

    Ultra-high Moveable Partition Wall is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high Moveable Partition Wall can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.

Features

  • Load bearing of each meter is more than 2000 KGS
  • Each pulley bearing more than 1500 KGS
  • Easily moved even being pushed at waist-high
  • The panel can make a turn automatically as sliding in the straight rail


Automatic Room Dividers Customization Movable Partition Wall Motorized Sliding Walls for Office

Automatic Room Dividers Customization Movable Partition Wall Motorized Sliding Walls for Office

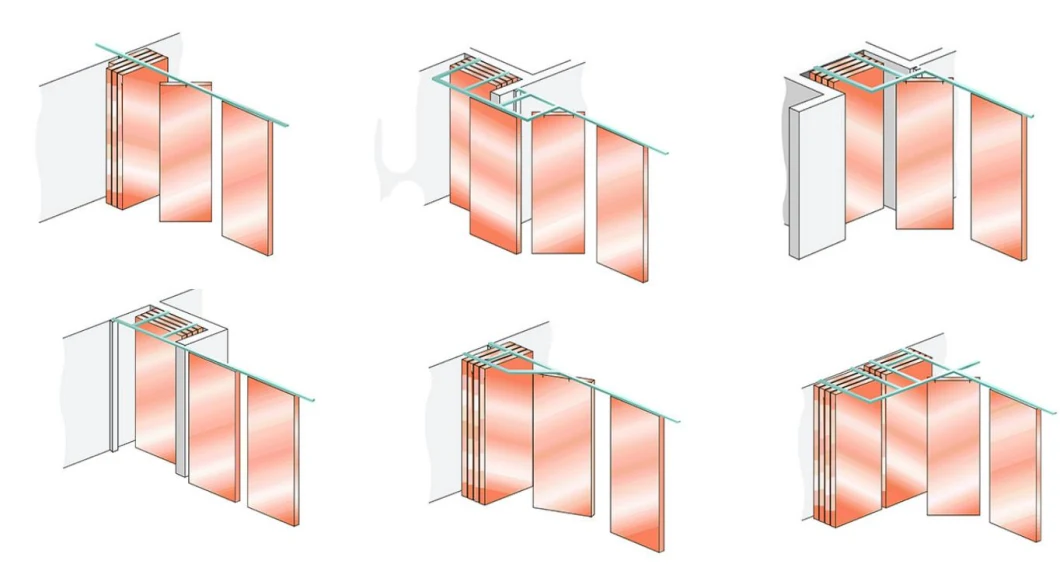

Stacking Ways

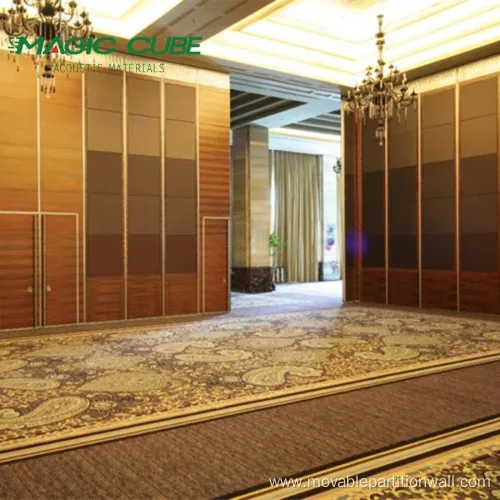

Automatic Room Dividers Customization Movable Partition Wall Motorized Sliding Walls for OfficeApplications

Automatic Room Dividers Customization Movable Partition Wall Motorized Sliding Walls for Office
Automatic Room Dividers Customization Movable Partition Wall Motorized Sliding Walls for Office
Automatic Room Dividers Customization Movable Partition Wall Motorized Sliding Walls for Office
Automatic Room Dividers Customization Movable Partition Wall Motorized Sliding Walls for Office


Automatic Room Dividers Customization Movable Partition Wall Motorized Sliding Walls for Office

The Movable Partition Wall can be called a high partition or a high partition wall. Different from the ordinary partition wall, it is a partition whose height is as high as the ceiling and can divide the space at the same time. Professional type high partition door panels have general The function of the wall, separating the space, is much more prominent than the traditional partition wall in terms of lighting, Sound Insulation, fire prevention, environmental protection, easy installation, reusability and mass production.

   Hotels generally need to be renovated after two or three years. Otherwise, the hotel environment will appear outdated, and the overall impression of customers on the hotel will be greatly reduced. If you want to renovate, should you use traditional walls or movable walls?

If the traditional fixed wall is still used, the old wall needs to be dismantled when redecorating the hotel, which is particularly troublesome and affects the business. Now there is a kind of Movable Partition Wall that is gorgeous and can be disassembled freely. The installation of beautiful movable partition will not only double the decoration effect of the hotel, but also very convenient to use and store. The movable partition wall is much more durable than the traditional partition wall, so its cost performance is higher than that of the traditional wall.


After installing and using this kind of movable partition wall, after the partition is divided into a small space, there is enough space to use. Its sound insulation effect is better than that of the traditional fixed wall, so the remaining garbage during disassembly is better than the traditional one. Less and easy to clean up. Because our super high-profile partition walls are made of green, environmentally friendly and renewable materials, these garbage are recyclable and recyclable garbage.


Need to pay attention to the following problems in the maintenance of mobile partitions:

1.The facade is uneven and uneven, you can make corresponding adjustments according to the finish. Measure with a spirit level on the partition surface. Be careful to leave a gap of about 10mm.

2. The partition is unstable and cannot be too close, so a certain distance should be maintained between the partition doors. Use a thin line to level the side of the movable partition. Prepare glue during the maintenance process. After the maintenance is completed, clean the surface of the partition.

3. When repairing the partition door, be careful not to damage the door.

4. When installing the card slot plate, remember that the card slot plate cannot be installed too tightly, and it is generally successful if it can be stuck.
