interior wall decorative mdf wall sound dividers



Product Structure






Panel Suspension	Top hunge system without the need for a floor track.
Panel Width	Each panel 600mm-1200mm.
Track	Aluminum OR Steel Track
Roller on panel	Single or double  roller.
Panel Frames	Heavy-duty steel-gusseted aluminum inner frames reinforced with  full height.
Top&bottm seals	Top and bottom pressure retractable seals ensure effortless moved and locked.
Module	700mm - 1200mm maximum.
Panel stacking	Numerous panel stacking options for complete flexibility.
Panel face	MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes	Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard



Ultra high 100 type

    Ultra-high Movable Partition Wall is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high Movable Partition Wall can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.

Features

• Load bearing of each meter is more than 2000 KGS
• Each pulley bearing more than 1500 KGS
• Easily moved even being pushed at waist-high
• The panel can make a turn automatically as sliding in the straight rail

Stacking Ways

Applications

Design of movable partition walls :

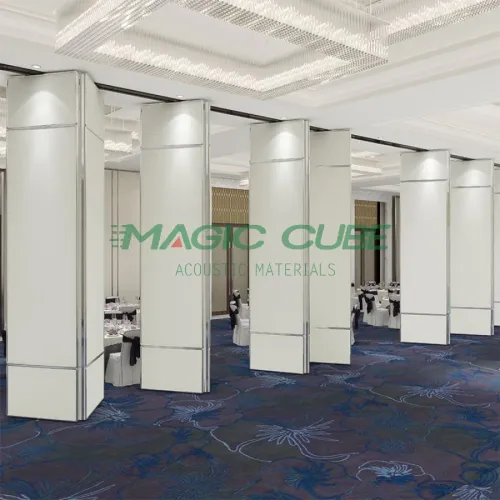

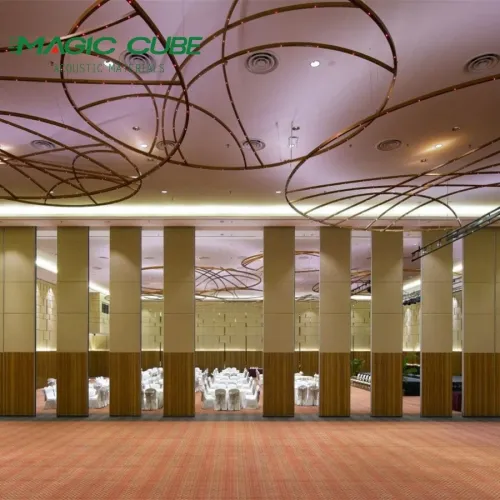

The Moveable Wall used in the hotel banquet hall can meet any requirements of different customers and design a unique style. Of course, the interior design can learn from domestic and foreign traditions and existing design achievements, but it cannot be just a simple "reference", regardless of the environment. It is also not advisable to "apply" to the type of building. Modern interior design should advocate innovation that combines the actual situation such as site size and style. For example, for the interior design of a hotel banquet hall, we can't just draw the scoop just like the gourd, but blindly use the broadness as the general model of design. Instead, we should pay attention to the actual use needs of the hotel and the hotel environment style and other factors for reasonable planning. The hotel banquet hall is relatively spacious, so it is necessary to have both the reception function of large-scale banquets and the use of diversified banquet halls. In the process of designing and installing the plan, we will combine the needs of customers and the style of the hotel banquet hall to innovate the design.

Let's take a look at the characteristics of active partitions:

Although the Moveable Wall is called "wall", it has the function of a general wall, but it is different from an ordinary wall. On the surface, the entire partition fan surface looks like a wall. In fact, it is composed of various components. The outer frame is made of aluminum alloy, which has strong stability and is not easy to be corroded. More usage requirements, support customer customization. In order to meet different usage requirements, it can be replaced with alloy materials that meet the properties to ensure a certain special purpose, and customized upgrades are recommended for a small number of environments with higher specifications.

Next, we will introduce the part of the fan surface. The "wall" body is made of various materials such as sound-absorbing cotton, so that it has the functions of Sound Insulation, heat insulation and energy saving. Communication of relevant performance, improve the sound insulation performance of the partition fan. The customizability of the fan surface is also one of the remarkable characteristics of the movable partition. The surface can be decorated with various materials such as "soft package", "hard package" and "wood veneer" to enhance the visual perception and integrate it into the environment. , to promote elegant, high-end or classic interior space.

The movable partition wall explains that movable partition walls can move freely. It divides the internal space by manually pushing and pulling the movable partition, creating an ideal space and quickly improving the actual use efficiency. For example, an ordinary hotel has only two halls. No matter how the hotel manager wants to allocate and use the space, he will only select customers with high efficiency as much as possible. After the use of the hotel movable partition wall, the utilization rate of the space in the hotel has been greatly improved. While improving the space efficiency, the economic benefits have also achieved great progress.
