Model No.: MQ-PARTITION
Brand: MAGIC CUBE
Warranty Service: 5 Years
After-sales Service: Online Technical Support, Return And Replacement
Engineering Solution Capability: Total Solution For Projects
Application Scenario: Hotel, Villa, Hall, Gym, Mall, Home Office, Home Bar
Design Style: Contemporary, Scandinavian, Eclectic, Victorian, Postmodern, Traditional, Southwestern, Japanese, Modern, Mediterranean, Craftsman, Chinese, Minimalist
Place Of Origin: China
Model NO.: MQ-P001
Thickness: 65mm, 85mm, 88mm.100mm or 125mm
Height: 3500mm~16000mm
Width: 750mm~2000mm
Sound Insulation (dB): 35-50dB
Fire Rating: 1.5 Hours
Door Panel Weight: Max 750kg/Panel
Motor Power: AC150V~250V
Packaging: Carton Paper Packaging, MDF Batten Cover Corners
Productivity: 5000sq/Month
Transportation: Ocean
Place of Origin: CHINA
Supply Ability: 5000sq/Month
Certificate: CE
HS Code: 76101000
Port: SHENZHEN,GUANGZHOU
Payment Type: T/T
Incoterm: FOB,CIF,EXW
The appearance of Movable Partition Wall not only makes the hotel's decoration deficiencies, but soundproof movable panels also enhances the hotel's functionality and becomes a charming scenery of hotel decoration. The board of the soundproof movable panels is based on particleboard, and the surface is professionally processed by melamine. Now melamine panels are widely used as the main material of panel furniture, office furniture and kitchen furniture.
| Type | 65 type, 80 type, 100 type, ultra high 100 type. |
| Finish | melamine MDF panel, fireproof PVC board, fabric(leather) wrapped MDF panel, fabric(leather) wrapped fiberglass panel |
| Density | 28~32kg/m² |
| STC | 40db-50db |
| Dimensions | width 700~1200mm, height 2000~5200mm, thickness 80~110mm, rail load 450kg |
| Structure | 25mm PAR fiberglass panel(24kg/m2 ) , 9mm base panel, 6063-T6 aluminum sectional material, durable NBR modified rubber for sealing |
| Panel Suspension | Top hunge system without the need for a floor track. |
| Panel Width | Each panel 600mm-1200mm. |
| Track | Aluminum OR Steel Track |
| Roller on panel | Single or double roller. |
| Panel Frames | Heavy-duty steel-gusseted aluminum inner frames reinforced with full height. |
| Top&bottm seals | Top and bottom pressure retractable seals ensure effortless moved and locked. |
| Module | 700mm - 1200mm maximum. |
| Panel stacking | Numerous panel stacking options for complete flexibility. |
| Panel face | MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc. |
| Finishes | Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard |

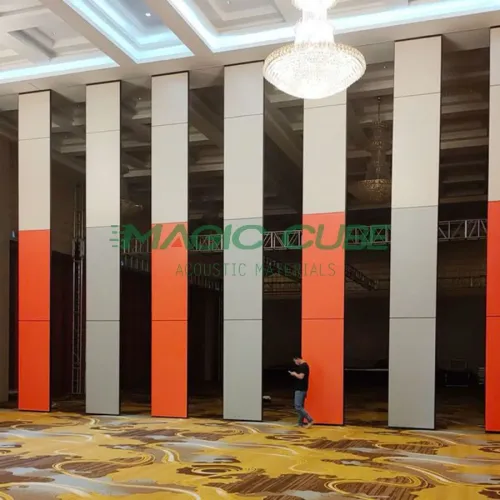

Ultra high 100 type
Ultra-high office moveable walls is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type office moveable walls is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high partition can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.
Features
Stacking Ways
Applications
Usually can not neglect the maintenance of the activity partition, if improper maintenance will easily appear serious aging results.
The reason for the aging of the partition
The movable partition of the hotel banquet hall has the characteristics of strong Sound Insulation, fire prevention, portability and easy operation. This sliding folding partition walls is especially suitable for space separation in hotel banquet halls, high-end office meeting rooms, high-end restaurant private rooms and other places. Most people will encounter the aging of movable partitions, but it is difficult to find the reasons. Let me introduce to you the reasons why movable partitions usually age:
1. Long-term use
All long-term exposure to the air and the influence of water, light and high and low temperatures will cause aging. Therefore, hotels should consider strong corrosion resistance and durability when selecting raw materials for partitions.
2. If the fabric of the hotel partition is a fabric curtain, it may be due to human factors or natural fading or discoloration may occur. Because of this, the hotel customer service staff must be careful maintenance of such fabric partitions. And maintenance.
3. The effect of damage
Because the movable partition is very easy to be damaged in the process of pushing and pulling, if there is some water seepage in the hotel, the surface of the partition will also cause erosion.
