Eco-friendly and safety partition walls
  • Eco-friendly and safety partition walls
  • Eco-friendly and safety partition walls
  • Eco-friendly and safety partition walls
  • Eco-friendly and safety partition walls
  • Eco-friendly and safety partition walls
  • Eco-friendly and safety partition walls

Eco-friendly and safety partition walls

$89.99 - 129.99 /Square Meter
Sound-absorbing board varieties:
Share:
  • Product Description
< >
Overview
Product Attributes

Model No.: MQ-PARTITION

Brand: MAGIC CUBE

Warranty Service: 5 Years

After-sales Service: Online Technical Support, Return And Replacement, Other

Engineering Solution Capability: Total Solution For Projects, Others

Application Scenario: Hotel, Office Building, Mall, Gym, Hall, Home Office, Workshop

Design Style: Contemporary, Scandinavian, Eclectic, Victorian, Traditional, Postmodern, Southwestern, Japanese, Mediterranean, Modern, Craftsman, Chinese, Minimalist, Coastal, Mid-Century Modern, French, Industrial, Rustic, Transitional, Midcentury, European, Tropical, Asian, Farmhouse

Place Of Origin: China

Model NO.: Movable Partitions

Type: Melamine MDF Panel, Fireproof PVC Board, Fabric

Application: Office, Hotel Banquet Hall, etc.

Main Material: Aluminum Frame and Track

Soundproof Mater: Rock Rool , Glass Wool

Soundproof Stc: 40dB-50dB

Dimensions: W700-1200mm, H2000-5200mm, Thickness 80-110mm

Stacking Way: Centre Partiting; Side Parking

Open Way: Sliding PartitionSliding Partition

Ransport Package: Carton Paper Packaging, MDF Batten Cover Corners

Supply Ability & Additional Information

Packaging: Carton Paper Packaging, MDF Batten Cover Corners

Productivity: 5000sq/Month

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: 5000sq/Month

Certificate: CE

HS Code: 76101000

Port: SHENZHEN,GUANGZHOU

Payment Type: T/T,Others

Incoterm: FOB,CIF,EXW

Packaging & Delivery
Selling Units:
Square Meter
Package Type:
Carton Paper Packaging, MDF Batten Cover Corners
Product Description


  The soundproof movable panels is like a door, unfold it when you need it, and store it when you don't need it, because the Movable Partition Wall has a beautiful appearance and is integrated with the interior decoration. To be coordinated and consistent. Because the soundproof movable panels is used in large public places, the safety factor must be high, and the movable partition must use high-quality raw materials, so its durability is very high and its service life is relatively long.

Specifications

Type 65 type, 80 type, 100 type, ultra high 100 type.
Finish melamine MDF panel, fireproof PVC board, fabric(leather) wrapped MDF panel, fabric(leather) wrapped fiberglass panel
Density  28~32kg/m²
STC 40db-50db
Dimensions width 700~1200mm, height 2000~5200mm, thickness 80~110mm, rail load 450kg
Structure 25mm PAR fiberglass panel(24kg/m2 ) , 9mm base panel, 6063-T6 aluminum sectional material, durable NBR modified rubber for sealing


Product Structure


Wholesale High Strength Cheap Unique Acoustic Sound Divider Sound Folding Divider
Wholesale High Strength Cheap Unique Acoustic Sound Divider Sound Folding Divider

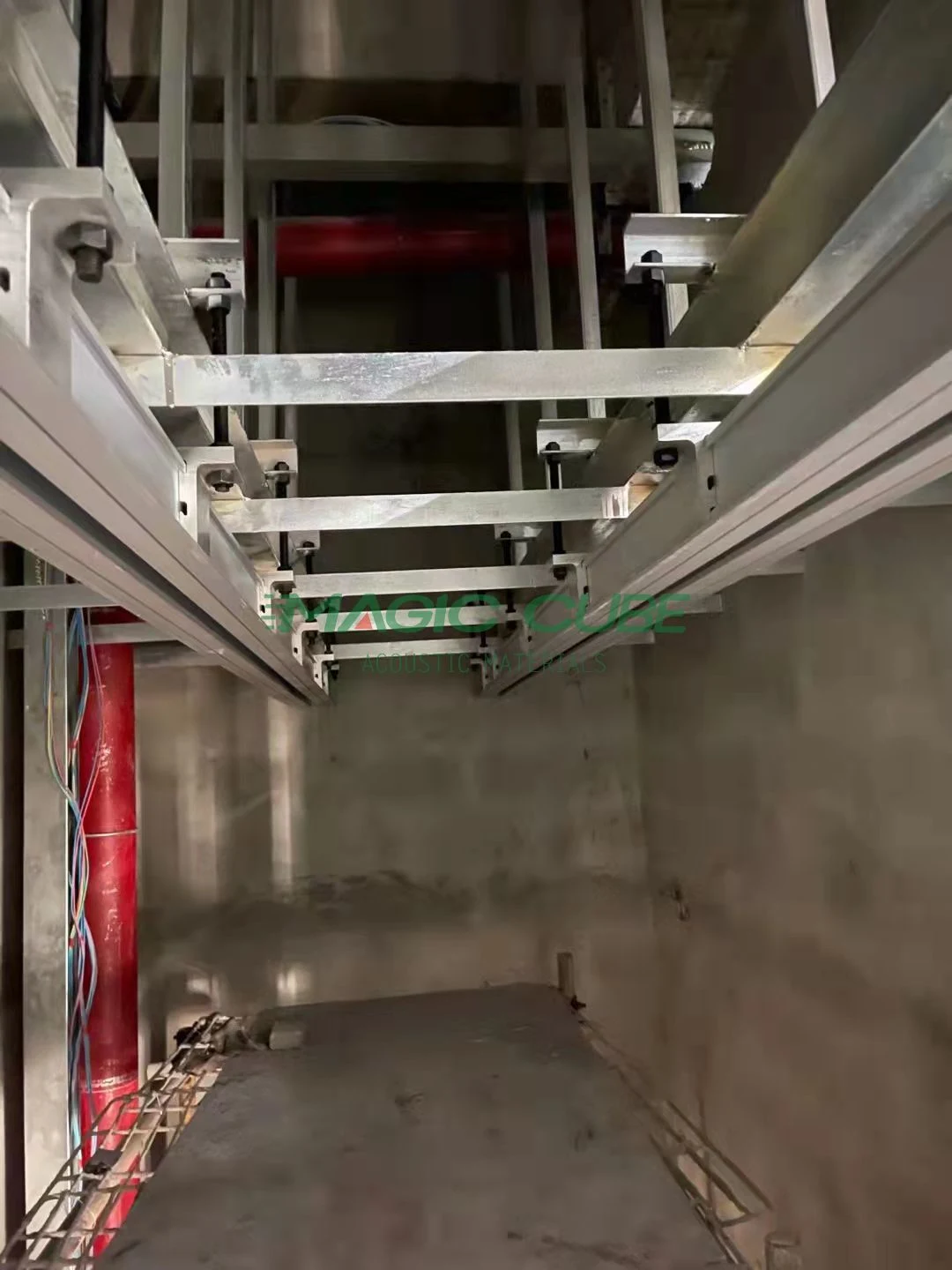

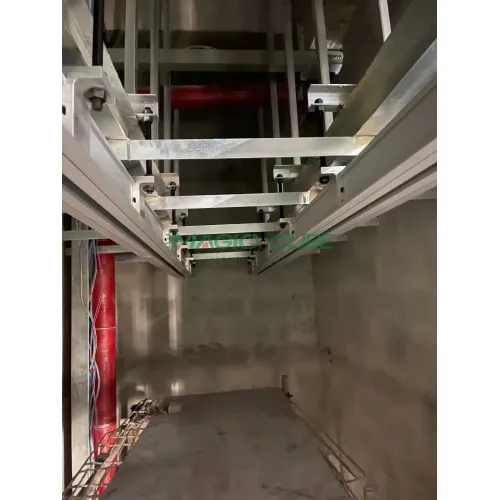

Panel Suspension  Top hunge system without the need for a floor track.
Panel Width Each panel 600mm-1200mm.
Track Aluminum OR Steel Track
Roller on panel Single or double  roller.
Panel Frames  Heavy-duty steel-gusseted aluminum inner frames reinforced with  full height.
Top&bottm seals Top and bottom pressure retractable seals ensure effortless moved and locked.
Module 700mm - 1200mm maximum.
Panel stacking Numerous panel stacking options for complete flexibility.
Panel face  MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard




Wholesale High Strength Cheap Unique Acoustic Sound Divider Sound Folding Divider

Ultra high 100 type

    Ultra-high divisions movable walls is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high divisions movable walls can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.

Features

  • Load bearing of each meter is more than 2000 KGS
  • Each pulley bearing more than 1500 KGS
  • Easily moved even being pushed at waist-high
  • The panel can make a turn automatically as sliding in the straight rail


Wholesale High Strength Cheap Unique Acoustic Sound Divider Sound Folding Divider

Wholesale High Strength Cheap Unique Acoustic Sound Divider Sound Folding Divider

Stacking Ways

Wholesale High Strength Cheap Unique Acoustic Sound Divider Sound Folding DividerApplications

Wholesale High Strength Cheap Unique Acoustic Sound Divider Sound Folding Divider
Wholesale High Strength Cheap Unique Acoustic Sound Divider Sound Folding Divider
Wholesale High Strength Cheap Unique Acoustic Sound Divider Sound Folding Divider
Wholesale High Strength Cheap Unique Acoustic Sound Divider Sound Folding Divider


Wholesale High Strength Cheap Unique Acoustic Sound Divider Sound Folding Divider

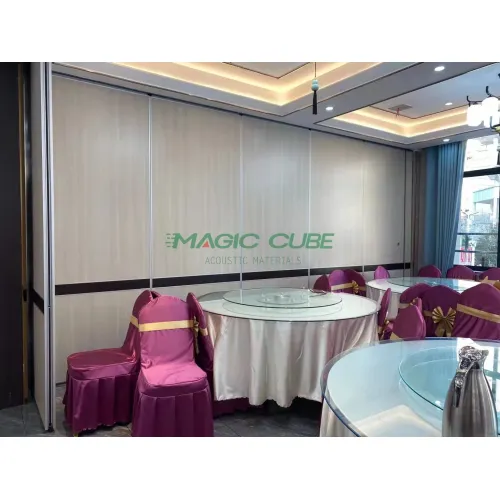

The space design of the hotel can be roughly classified into functional spaces such as conference rooms and banquet halls according to its architectural layout, building area and space use. The difference in functional space creates the difference between them. As the most important space of the hotel, the banquet hall is more multi-functional.

To be coordinated and consistent. Because the soundproof portable partition walls is used in large public places, the safety factor must be high, and the soundproof portable partition walls must use high-quality raw materials, so its durability is very high and its service life is relatively long. Nowadays, many hotels want to change the planning and personality, and often need to change the space personality. The movable partition wall meets the various needs of the hotel. More advanced banquet halls and other places will seek a space with privacy. The movable partition wall has such advantages, and the Sound Insulation coefficient is also very high. After being divided into multiple small spaces, the relatively high sound insulation coefficient will bring people. Lots of convenience. It is a very good product for groups who pursue a private and quiet office space. The price is not high and the practicability is strong.

When installing the hotel event partition, you only need to set the personalized rail guide system on the ceiling of the banquet hall in advance. When you need to change the size of the banquet hall, then place these hotel banquet hall partition walls along the movable partition. The rails are pushed, and once they're all put together and locked in place, you've got a small banquet hall. When you need a small box, push and pull these movable partition walls along the rail system of another "box-building", and after the same operation, it can become a smaller space. If you want to restore it to a large banquet hall later, you only need to stack the movable partition walls of these banquet halls.
