Office modern movable dividers

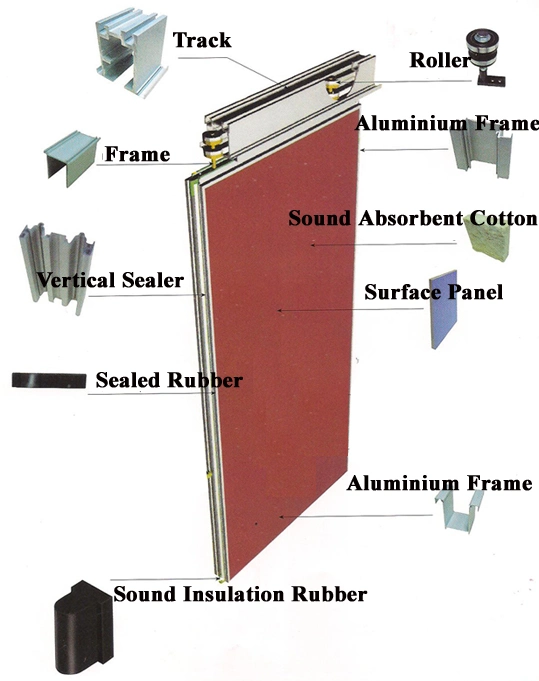

Product Structure






Panel Suspension	Top hunge system without the need for a floor track.
Panel Width	Each panel 600mm-1200mm.

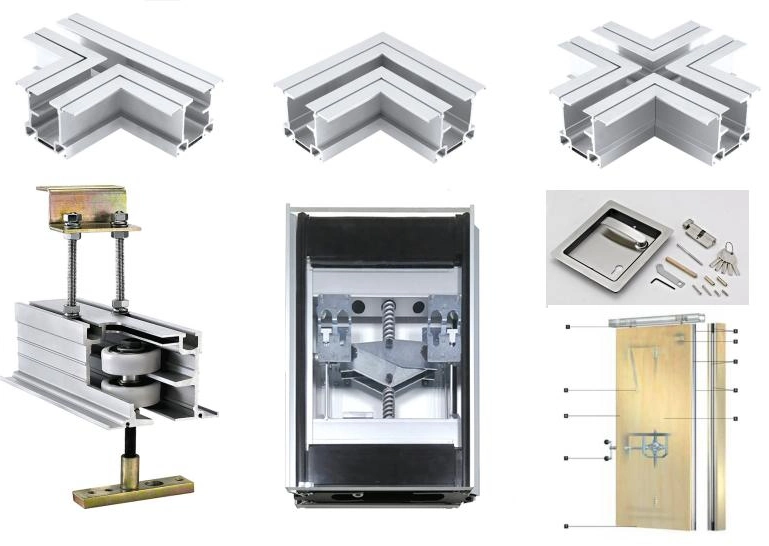

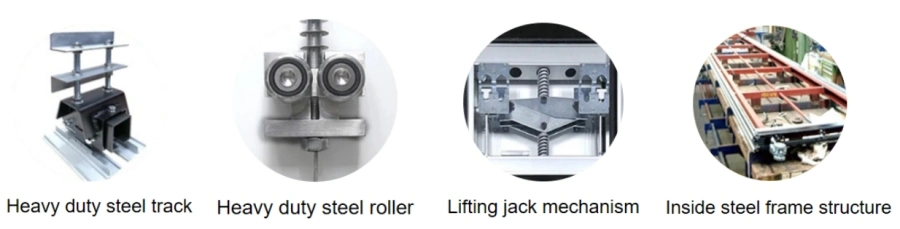

Track	Aluminum OR Steel Track
Roller on panel	Single or double  roller.
Panel Frames	Heavy-duty steel-gusseted aluminum inner frames reinforced with  full height.
Top&bottm seals	Top and bottom pressure retractable seals ensure effortless moved and locked.
Module	700mm - 1200mm maximum.
Panel stacking	Numerous panel stacking options for complete flexibility.

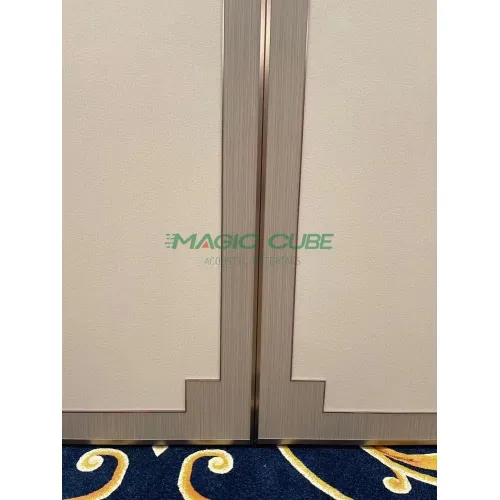

Panel face	MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes	Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard



Ultra high 100 type

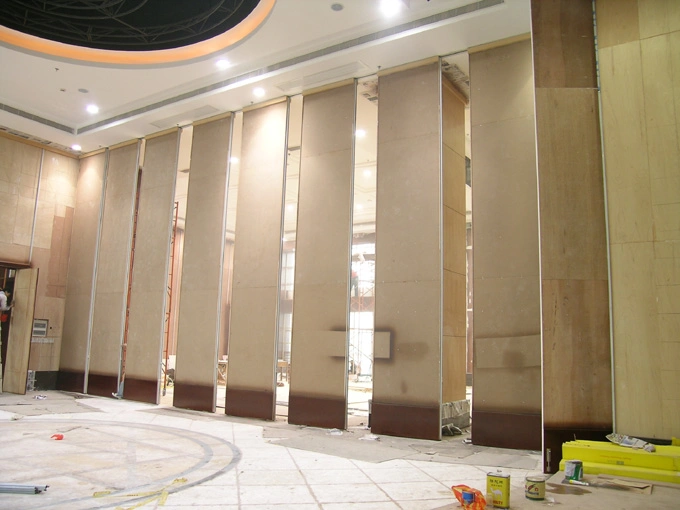

    Ultra-high vertical foldable partitions  is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high vertical foldable partitions can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.

Features

• Load bearing of each meter is more than 2000 KGS
• Each pulley bearing more than 1500 KGS
• Easily moved even being pushed at waist-high
• The panel can make a turn automatically as sliding in the straight rail

Stacking Ways

Applications

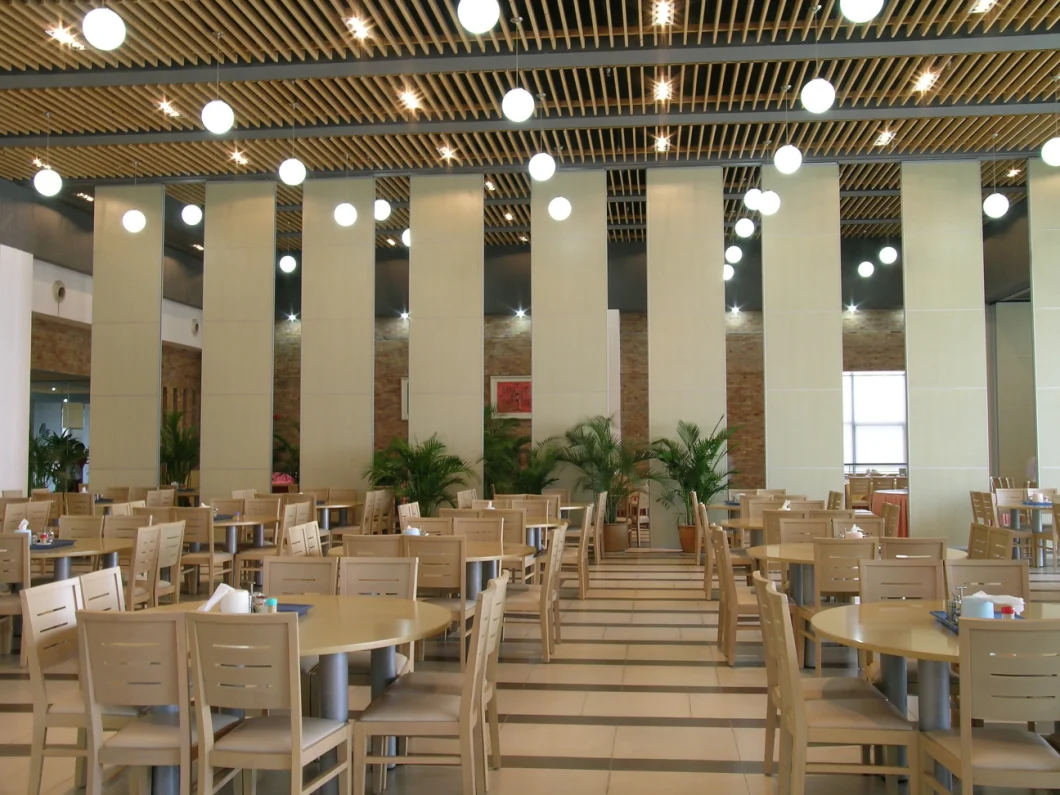

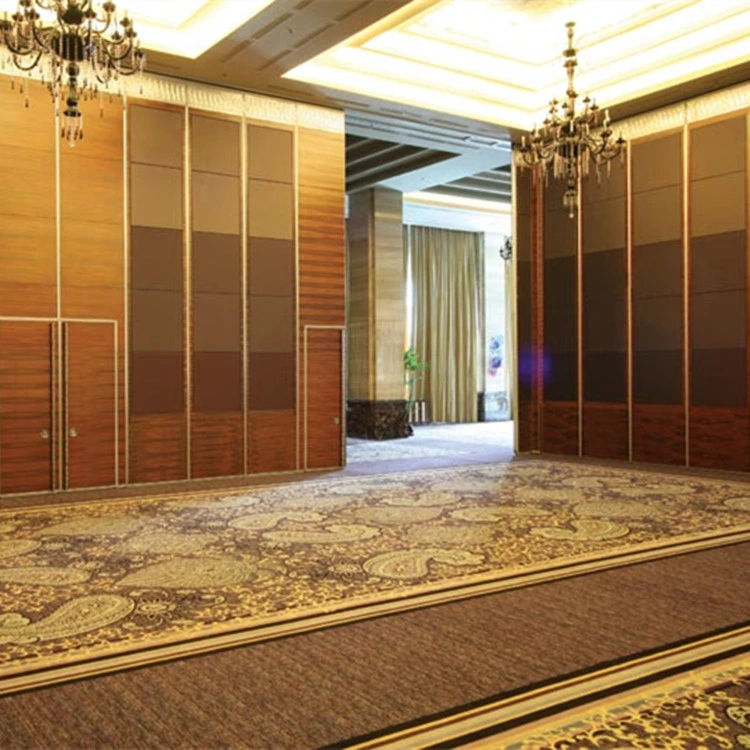

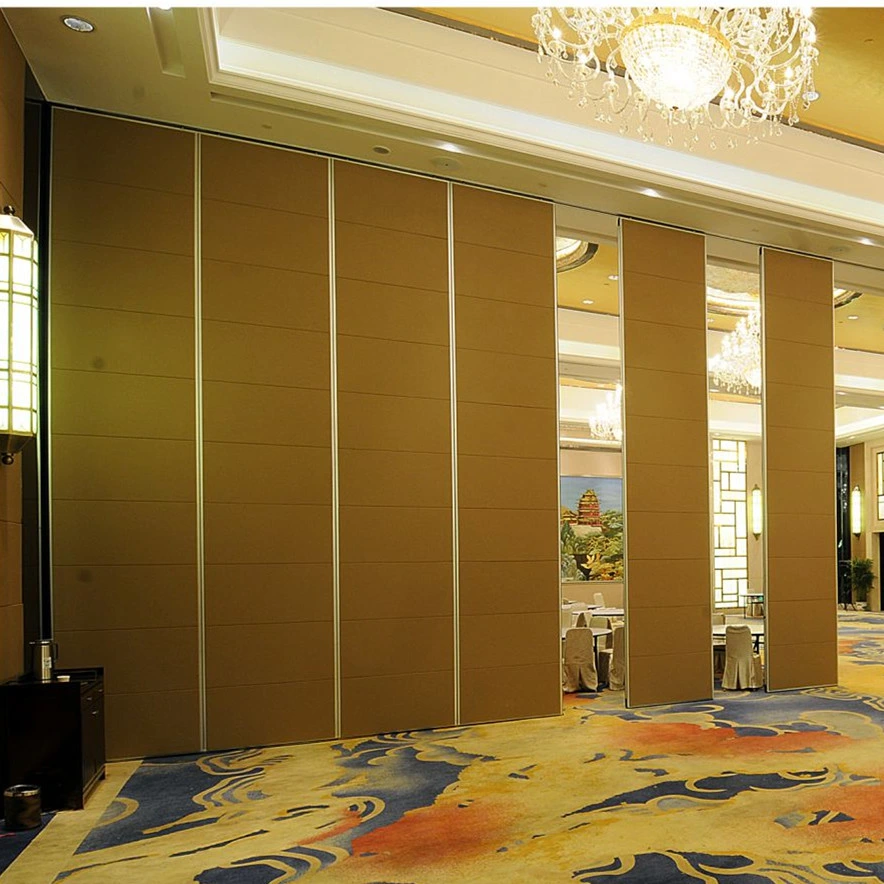

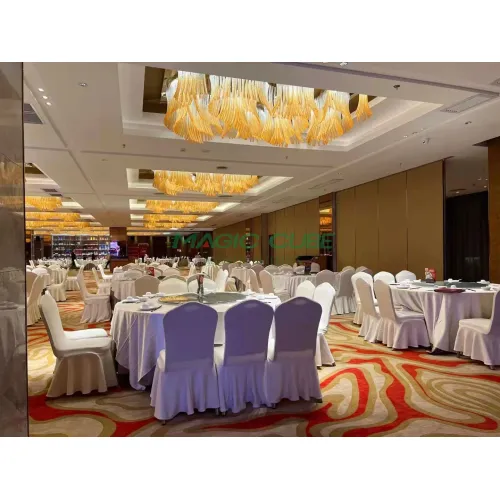

modern movable dividers are just right in interior commercial design. When used in large business office buildings such as hotels, exhibition halls and banquet halls, they can not only play a role in separating space, but also improve the overall space design and grade. In the office areas such as the hotel conference room, the partitions are segregated in an orderly manner, and the partitions are serious and not old-fashioned. The materials can also ensure the characteristics of heat resistance and high Sound Insulation coefficient. The beautiful and fashionable appearance adds a lot to the overall environment of the hotel.

What kind of partition can be called a super high partition?

Ultra-high type (standard height 9m-18m) can be called ultra-high partition, which is modern movable dividers often used in many high-star hotels. Space, to achieve the effect of multiple uses in one hall without interfering with each other.

1. Installation track

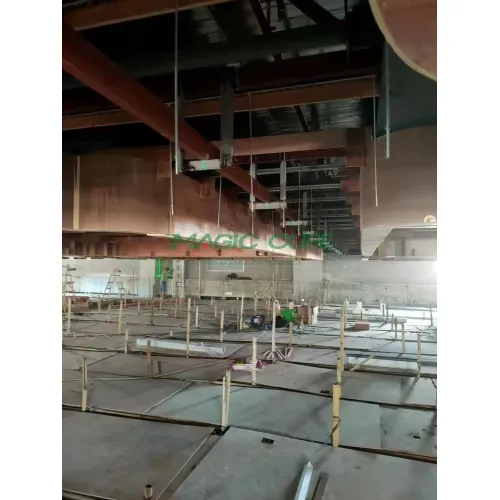

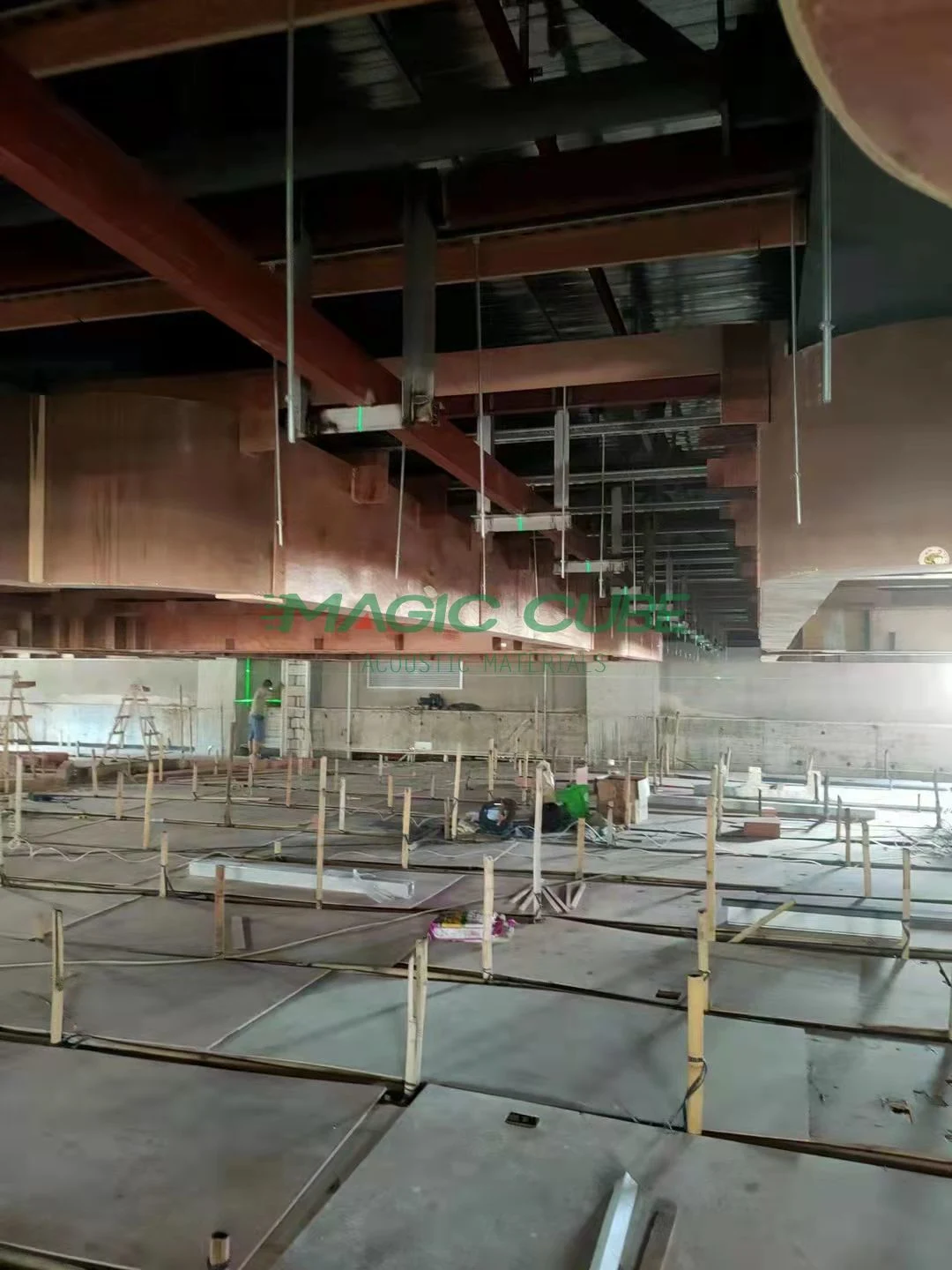

Suspended track: The fixed way of the suspended guide is to install a pulley on the top surface of the partition door panel, which is connected to the track suspended from the ceiling. The type of track and pulley should be selected according to the size of the bearing weight. For heavy-duty movable partition walls, the rails are screwed or welded to the steel frame.

According to the specific weight of the track and the partition fan, install the pulley in advance and reserve the opening of the track.

2. Install the movable panel

According to the installation method, accurately draw the pulley line on each panel, and then fix the fixing frame of the pulley on the upper or lower stile of the partition fan with screws; then put the panels into the track one by one, and adjust each panel to be perpendicular to the The ground, and the push-pull rotation is flexible, and finally each fan is connected and fixed. Usually, the adjacent panels are connected by hinges

2. Install movable partition door panels

Mark the pulley placement line on each partition door panel, and then fix the pulley's fixing frame on the upper or lower column of the partition fan with screws; The condition of each door panel, make them perpendicular to the ground, after ensuring that they can be pushed flexibly, connect and fix each door panel, and connect the adjacent panels with hinges.
