Model No.: MQ-PARTITION
Brand: MAGIC CUBE
Main Application: Commercial Furniture
Types Of: Office Furniture
Whether To Support Mail Order Packaging (special Packaging For Cross-border E-commerce): Y
Packaging: Carton Paper Packaging, MDF Batten Cover Corners
Productivity: 5000sq/Month
Transportation: Ocean
Place of Origin: CHINA
Supply Ability: 5000sq/Month
Certificate: CE
HS Code: 76101000
Payment Type: T/T,Others
Incoterm: FOB,CIF,EXW

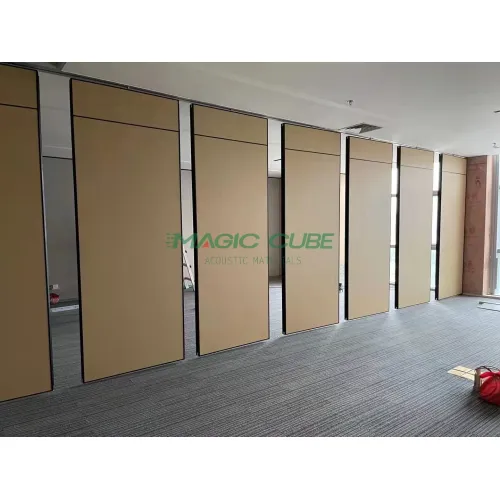

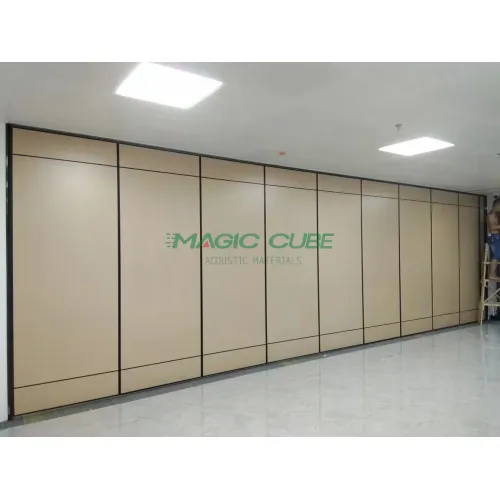

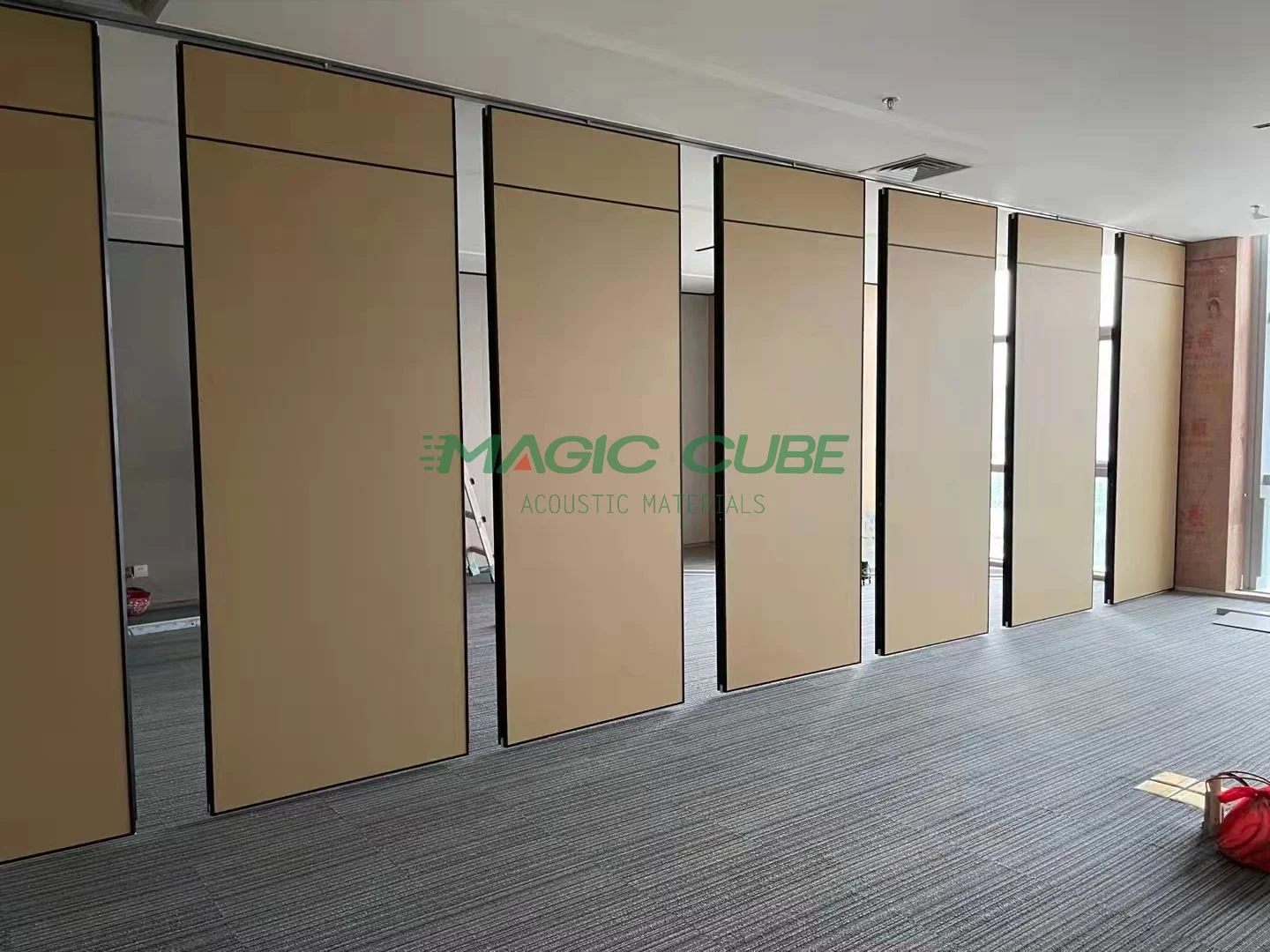

operable partition sheets is a Movable Wall with general wall functions that can divide large space into small space or connect small space into large space at any time according to needs. It can play a role of multiple functions in one hall or one room. The operable partition sheets brings great convenience to people's work. For example, you can fold it on one side when you need it, so that the two spaces are temporarily joined to make them appear larger, which is convenient for temporary departmental meetings.
Specifications
| Type | 65 type, 80 type, 100 type, ultra high 100 type. |
| Finish | melamine MDF panel, fireproof PVC board, fabric(leather) wrapped MDF panel, fabric(leather) wrapped fiberglass panel |
| Density | 28~32kg/m² |
| STC | 40db-50db |
| Dimensions | width 700~1200mm, height 2000~5200mm, thickness 80~110mm, rail load 450kg |
| Structure | 25mm PAR fiberglass panel(24kg/m2 ) , 9mm base panel, 6063-T6 aluminum sectional material, durable NBR modified rubber for sealing |
| Panel Suspension | Top hunge system without the need for a floor track. |
| Panel Width | Each panel 600mm-1200mm. |
| Track | Aluminum OR Steel Track |
| Roller on panel | Single or double roller. |
| Panel Frames | Heavy-duty steel-gusseted aluminum inner frames reinforced with full height. |
| Top&bottm seals | Top and bottom pressure retractable seals ensure effortless moved and locked. |
| Module | 700mm - 1200mm maximum. |
| Panel stacking | Numerous panel stacking options for complete flexibility. |
| Panel face | MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc. |
| Finishes | Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard |
Ultra high 100 type
Ultra-high folding partition wall systems is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high folding partition wall systems can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.
Features
Stacking Ways
Applications
movable divider panels can quickly and easily divide spaces. It has a top suspension system and does not require floor tracks. The movable partition is made of high-density aluminum frame, special rubber, and high-quality Sound Insulation cotton. Sound insulating rubber around the panels helps isolate noise from entering. The movable divider panels is suspended on aluminum rails and equipped with multi-directional wheels. The Movable Partition Wall is mounted on the ceiling, suspended on aluminum rails, and also equipped with multi-directional wheels.
What are the characteristics of movable partition walls?
The movable partition is a movable wall that can divide a large space into a small space or connect a small space into a large space anytime and anywhere according to the needs and has the function of a general wall.
It has the following features:

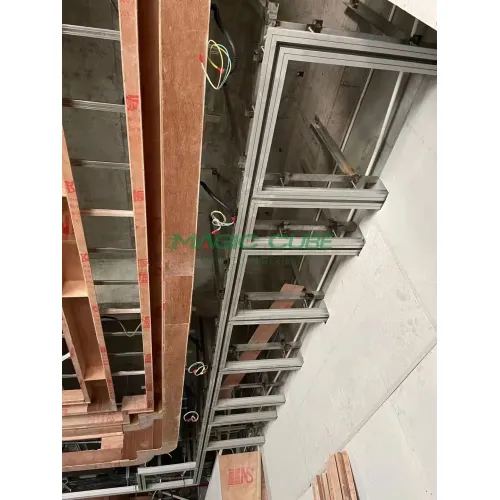

1. There is no track on the floor, no floor rail suspension, only need to install the track on the ceiling during installation
2. The partition is stable and safe, stable and reliable after correct installation, not easy to swing
3. The sound insulation effect is good, the partition material is made of environmentally friendly materials, and the sound insulation coefficient can reach 50dB
4. Excellent thermal insulation performance, eliminates different occupancy rates, and divides large spaces into small spaces, which can reduce the power consumption of air conditioners
5. High-efficiency fire prevention, which is made of high-efficiency and high-quality fire-resistant materials, with excellent fire-proof performance
6. The appearance is simple and elegant, the surface can be decorated arbitrarily, or it can be unified with the interior decoration effect
7. It is convenient to retract and retract, the partition can be retracted and retracted freely, and the promotion is more flexible. One person can complete the entire process of retracting and partitioning.
8. It is convenient to store. When closing the board, the partition is hidden in a special storage cabinet, which will not affect the aesthetics of the overall space at all.
9. There are many applications for partitions, such as: conference halls, exhibition halls, restaurants, high-clean factories and offices, etc.
Product Categories : Ultra-high Partition Wall
