Soundproofing Sliding Aluminium Frame movable doors walls

$89.99 - 129.99 /Square Meter
Sound-absorbing board varieties:
Share:
  • Product Description
Overview
Product Attributes

BrandMAGIC CUBE

Main ApplicationCommercial Furniture

Types OfOffice Furniture

Whether To Support Mail Order Packaging (special Packaging For Cross-border E-commerce)Y

Supply Ability & Additional Information

TransportationOcean

Place of OriginCHINA

CertificateCE

HS Code 76101000

Payment TypeT/T,Others

IncotermFOB,CIF,EXW

Packaging & Delivery
Selling Units:
Square Meter

Product Description

The space design of the hotel can be roughly classified into functional spaces such as conference rooms and banquet halls according to its architectural layout, building area and space use. The difference in functional space creates the difference between them. As the most important space of the hotel, the banquet hall is more multi-functional.



Specifications

Type 65 type, 80 type, 100 type, ultra high 100 type.
Finish melamine MDF panel, fireproof PVC board, fabric(leather) wrapped MDF panel, fabric(leather) wrapped fiberglass panel
Density  28~32kg/m²
STC 40db-50db
Dimensions width 700~1200mm, height 2000~5200mm, thickness 80~110mm, rail load 450kg
Structure 25mm PAR fiberglass panel(24kg/m2 ) , 9mm base panel, 6063-T6 aluminum sectional material, durable NBR modified rubber for sealing

Product Details

Product Structure


Automatic Room Dividers Exhibition Hall Partition Sliding Wall Partition Wall Sliding Divider
Automatic Room Dividers Exhibition Hall Partition Sliding Wall Partition Wall Sliding Divider



Panel Suspension  Top hunge system without the need for a floor track.
Panel Width Each panel 600mm-1200mm.
Track Aluminum OR Steel Track
Roller on panel Single or double  roller.
Panel Frames  Heavy-duty steel-gusseted aluminum inner frames reinforced with  full height.
Top&bottm seals Top and bottom pressure retractable seals ensure effortless moved and locked.
Module 700mm - 1200mm maximum.
Panel stacking Numerous panel stacking options for complete flexibility.
Panel face  MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard




Automatic Room Dividers Exhibition Hall Partition Sliding Wall Partition Wall Sliding Divider

Ultra high 100 type

    Ultra-high Movable Wall with door is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high partition can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.

Features

  • Load bearing of each meter is more than 2000 KGS
  • Each pulley bearing more than 1500 KGS
  • Easily moved even being pushed at waist-high
  • The panel can make a turn automatically as sliding in the straight rail


Automatic Room Dividers Exhibition Hall Partition Sliding Wall Partition Wall Sliding Divider

Automatic Room Dividers Exhibition Hall Partition Sliding Wall Partition Wall Sliding Divider

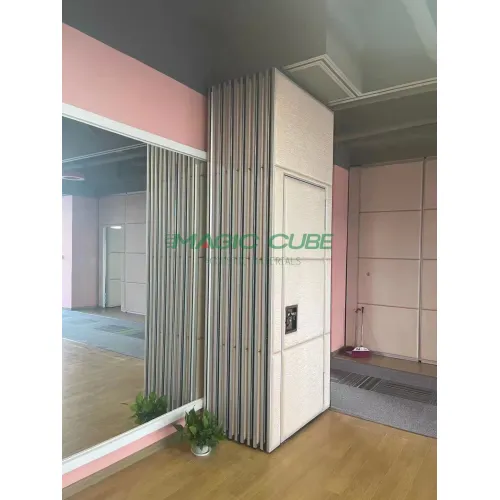

Stacking Ways

Automatic Room Dividers Exhibition Hall Partition Sliding Wall Partition Wall Sliding DividerApplications

Automatic Room Dividers Exhibition Hall Partition Sliding Wall Partition Wall Sliding Divider
Automatic Room Dividers Exhibition Hall Partition Sliding Wall Partition Wall Sliding Divider
Automatic Room Dividers Exhibition Hall Partition Sliding Wall Partition Wall Sliding Divider
Automatic Room Dividers Exhibition Hall Partition Sliding Wall Partition Wall Sliding Divider


Automatic Room Dividers Exhibition Hall Partition Sliding Wall Partition Wall Sliding Divider

The movable wall with door of the hotel banquet hall have very strict control standards in terms of materials. In order to reduce the pollution output, the movable partition walls are made of environmentally friendly and lightweight materials. Because there are no harmful substances such as formaldehyde in the panels of the interior movable wall systems, the entire installation period is very short, and the entire installation project is completed very quickly. After installation, the venue and soundproof portable partition walls can be used immediately, saving time and labor costs. For the commercial building spaces with large passenger flow such as banquet hall hotels, event partitions can meet the requirements of hotel banquet halls in all aspects such as features, functions and advantages. necessary needs.

Different hotel banquet halls will also have different functions and purposes. When setting up meeting rooms in banquet halls, a single large space cannot meet the respective needs of multiple enterprises at the same time. It is divided into corresponding small spaces with asoundproof portable partition walls. As long as the partition wall is set up in advance and the corresponding table and chairs are placed on the same day, it is completed.
