exhibition hall acoustic board acoustic folding partition

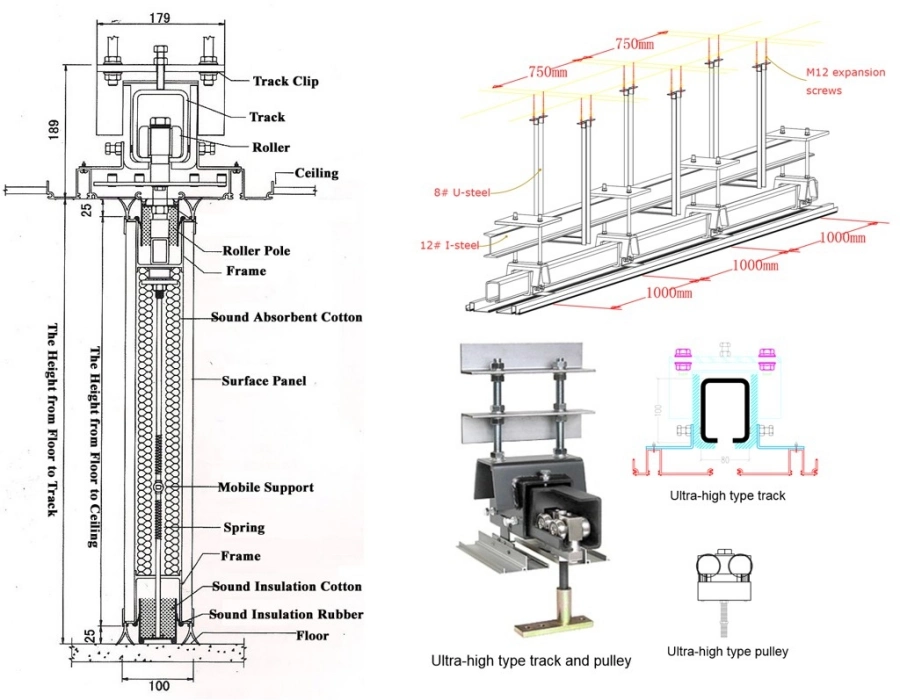

Product Structure






Panel Suspension	Top hunge system without the need for a floor track.
Panel Width	Each panel 600mm-1200mm.
Track	Aluminum OR Steel Track
Roller on panel	Single or double  roller.
Panel Frames	Heavy-duty steel-gusseted aluminum inner frames reinforced with  full height.
Top&bottm seals	Top and bottom pressure retractable seals ensure effortless moved and locked.
Module	700mm - 1200mm maximum.
Panel stacking	Numerous panel stacking options for complete flexibility.
Panel face	MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes	Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard



Ultra high 100 type

    Ultra-high movable sliding walls is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high partition can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.

Features

• Load bearing of each meter is more than 2000 KGS
• Each pulley bearing more than 1500 KGS
• Easily moved even being pushed at waist-high
• The panel can make a turn automatically as sliding in the straight rail

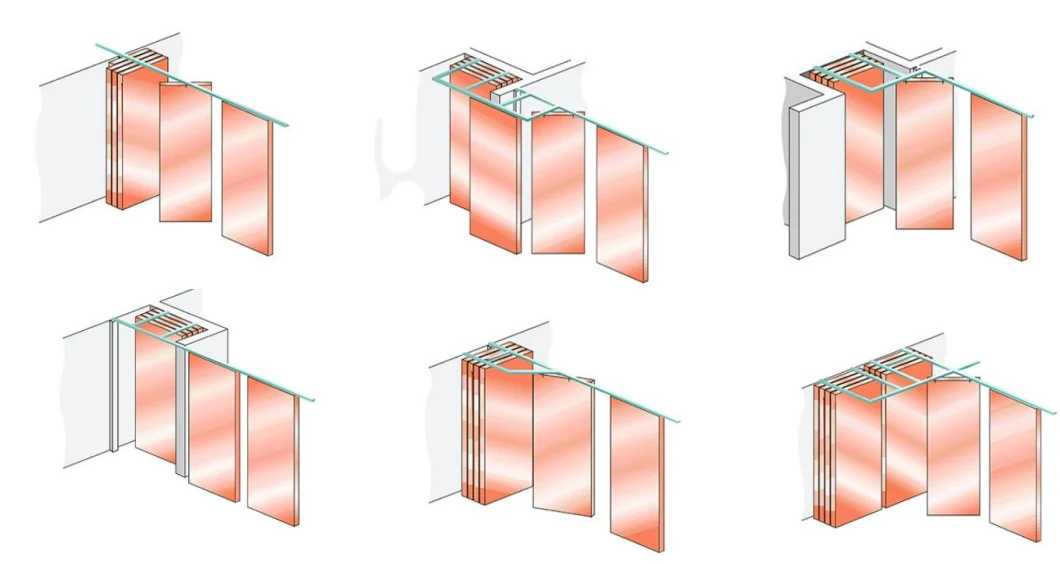

Stacking Ways

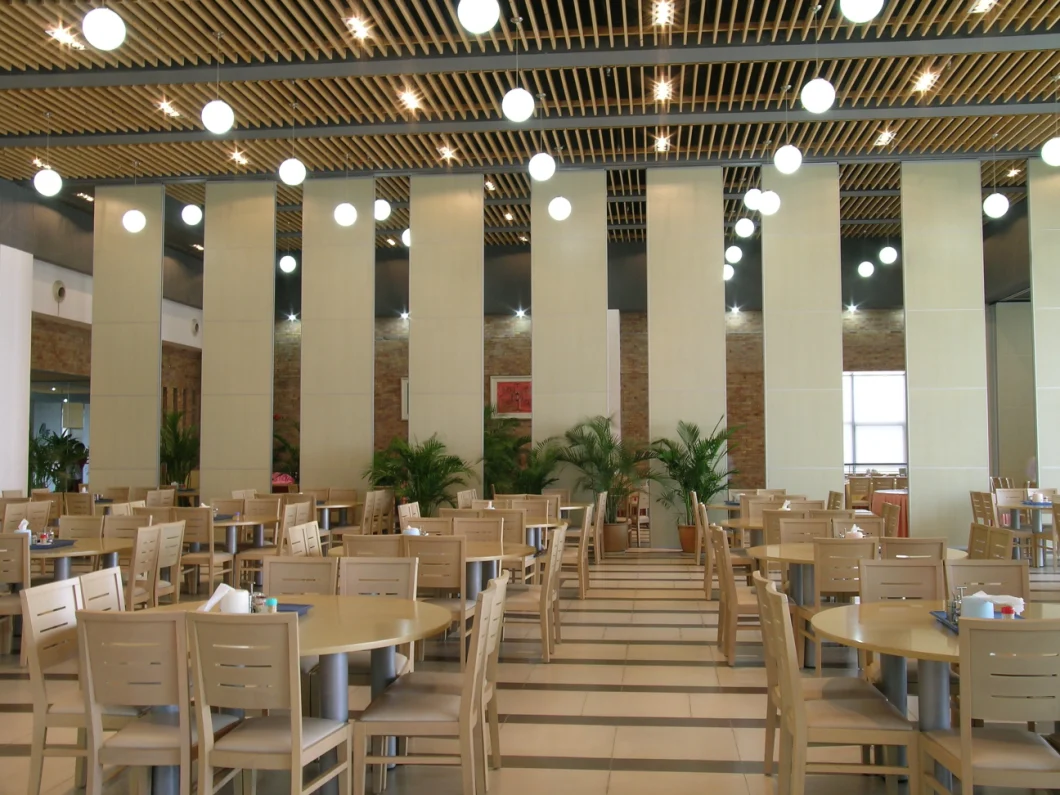

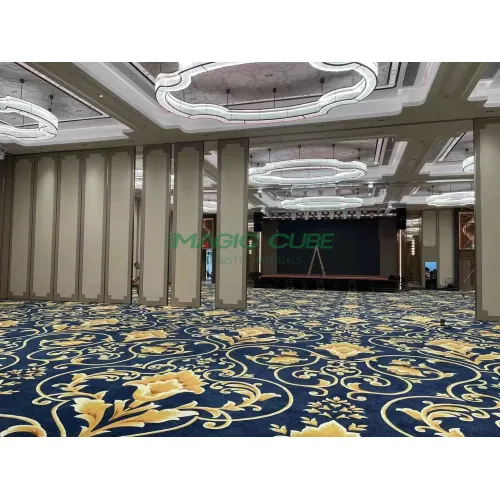

Applications

Hall Sliding Partitionfeatures:

1. The height of the soundproof Movable Partition Wall is sometimes as high as 15 meters. When people push the partition door, the height that can be reached by the human hand is limited. Even such a high partition wall door can use the movable sliding walls smoothly by relying on the strength of one person.

2. The material of the partition wall door panel is smooth and not thorny, and it is easy to clean and wipe off the stains. Use a rag or a foldable long mop to simply wet the surface with clean water to wipe the dust and dirt on the surface. It is easy to wipe off with a light wipe.

3. The ultra-high soundproof movable partition wall can not only prevent fire and heat insulation, but also has a Sound Insulation coefficient of up to 50dB, which means that it can isolate the voice of ordinary people. Someone is talking in a meeting next door. Automatically becomes smaller or even disappears inaudible.

4. Our ultra-high hall sliding partition do not have wheels, and are driven entirely by the rails above the ceiling. This way no marks will be left on the floor.

5. In order to better meet the customization requirements of each customer, our door has experienced professional designers to design construction plans for customers, combining the colors and styles selected by customers and the data that have been measured on the customer site and the needs of customers. Integrate and summarize ZAAI to design a construction plan that satisfies the customer.
