High Quality Exhibition Hall moveable wall partitions



Product Details

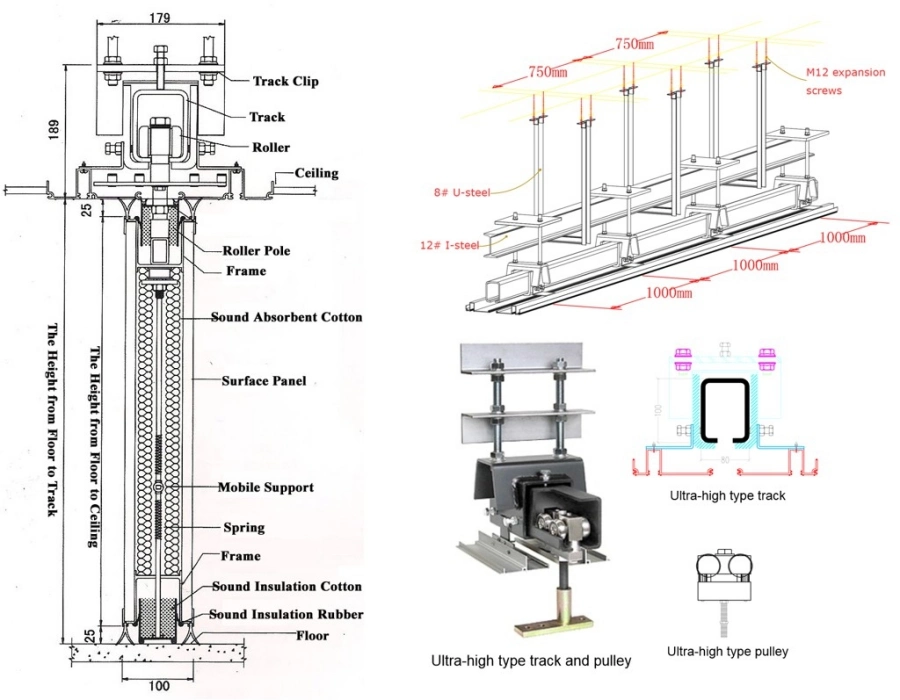

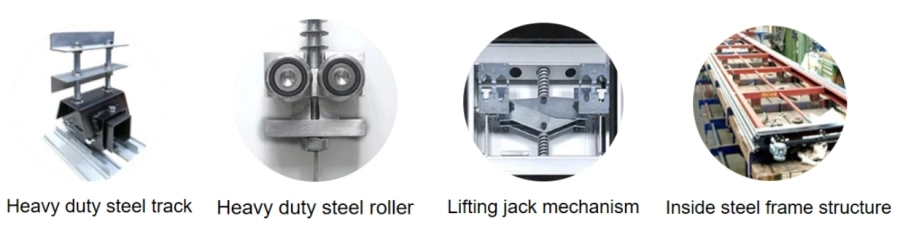

Product Structure






Panel Suspension	Top hunge system without the need for a floor track.
Panel Width	Each panel 600mm-1200mm.

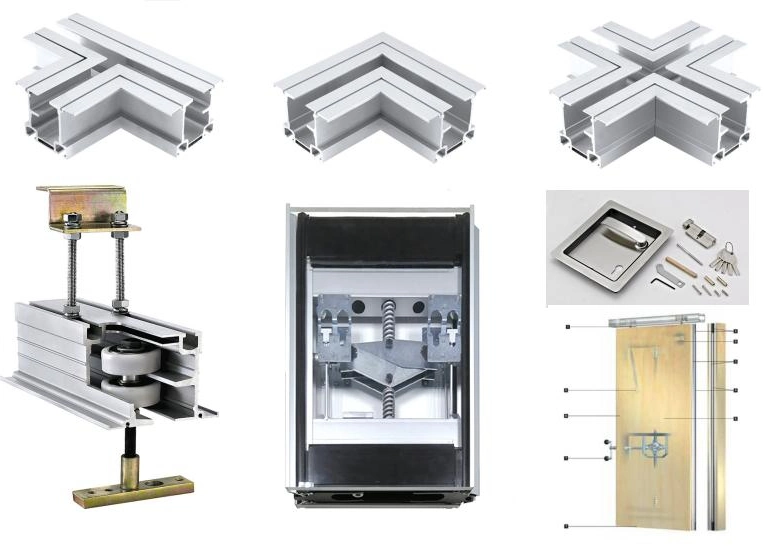

Track	Aluminum OR Steel Track
Roller on panel	Single or double  roller.
Panel Frames	Heavy-duty steel-gusseted aluminum inner frames reinforced with  full height.
Top&bottm seals	Top and bottom pressure retractable seals ensure effortless moved and locked.
Module	700mm - 1200mm maximum.
Panel stacking	Numerous panel stacking options for complete flexibility.
Panel face	MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes	Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard

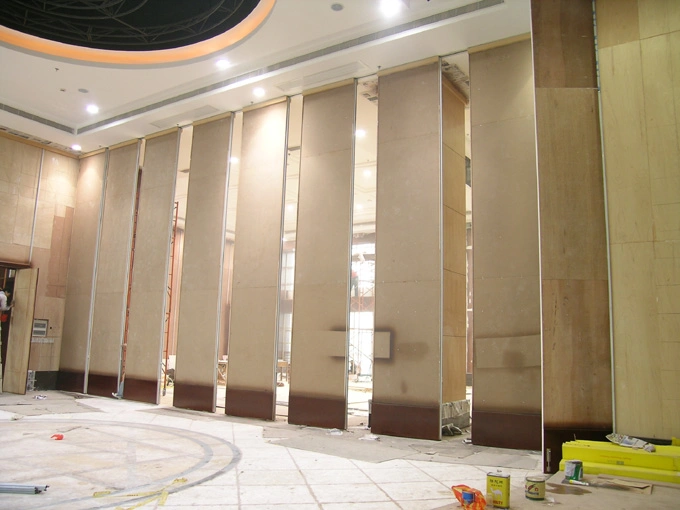

Ultra high 100 type

    Ultra-high moveable hall partitions is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type Moveable Divider Wall is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high partition can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.

Features

• Load bearing of each meter is more than 2000 KGS
• Each pulley bearing more than 1500 KGS
• Easily moved even being pushed at waist-high
• The panel can make a turn automatically as sliding in the straight rail

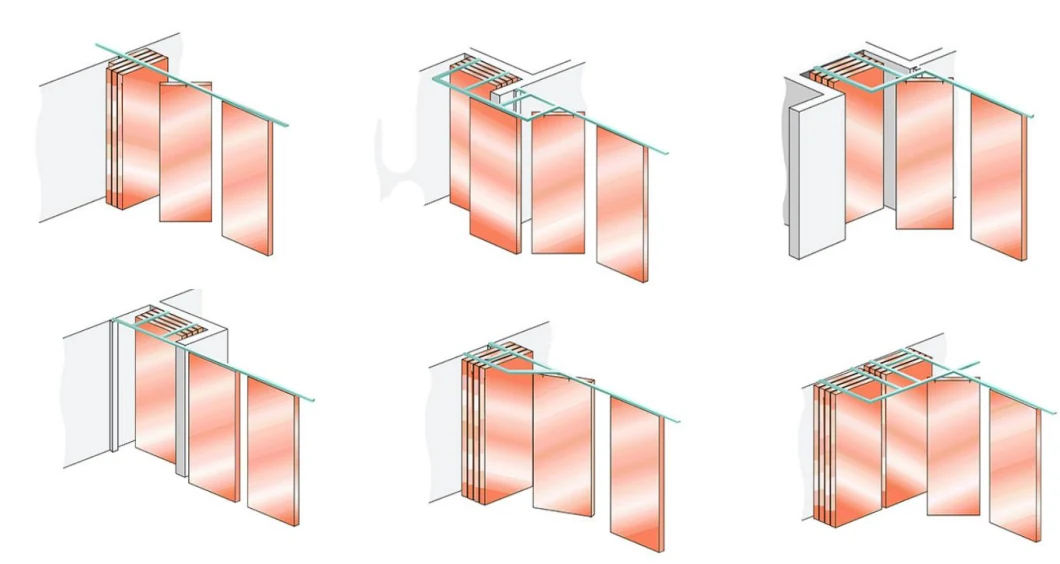

Stacking Ways

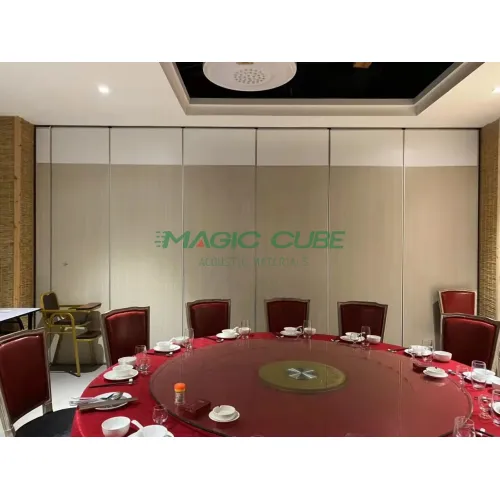

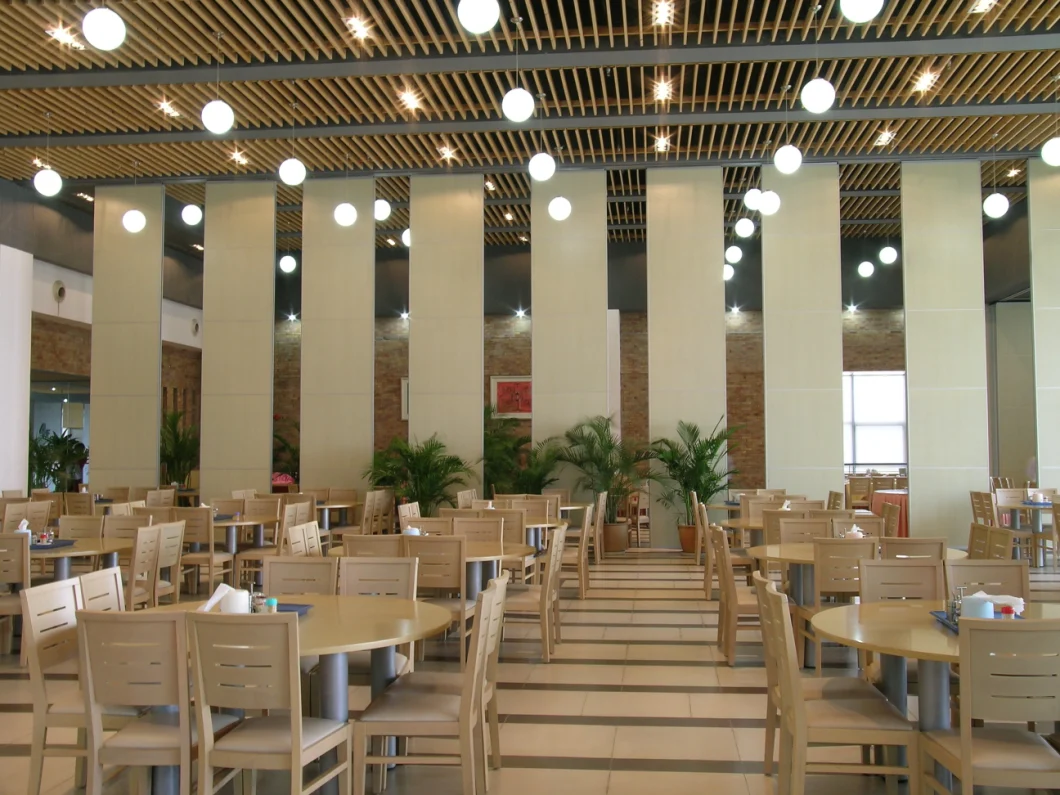

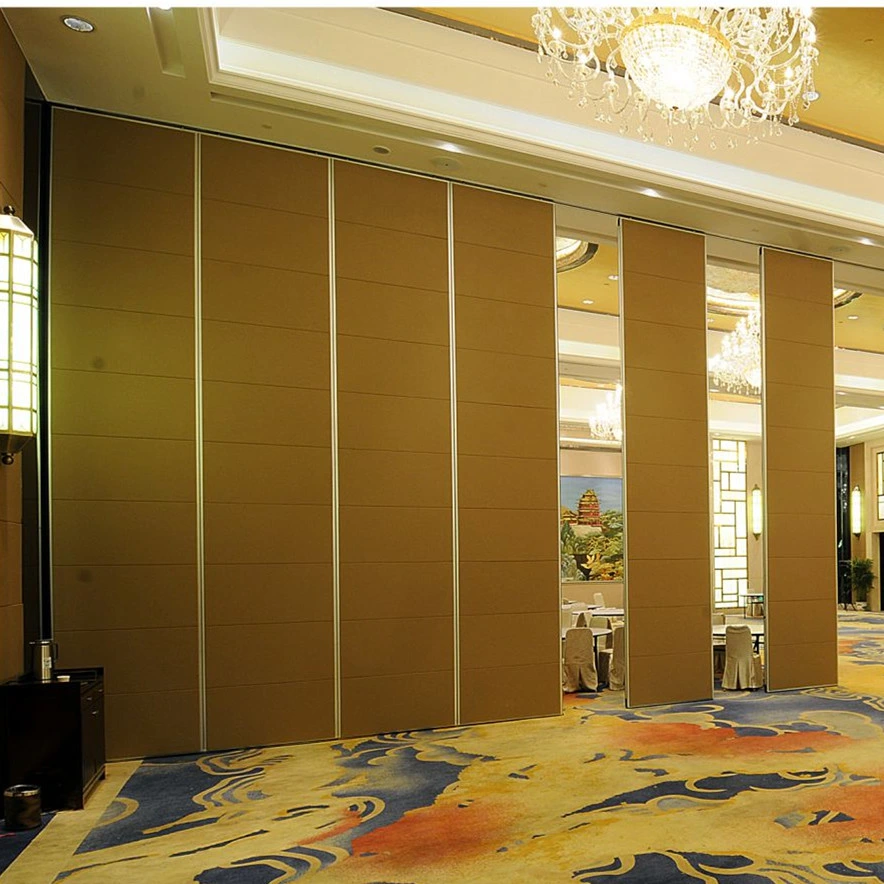

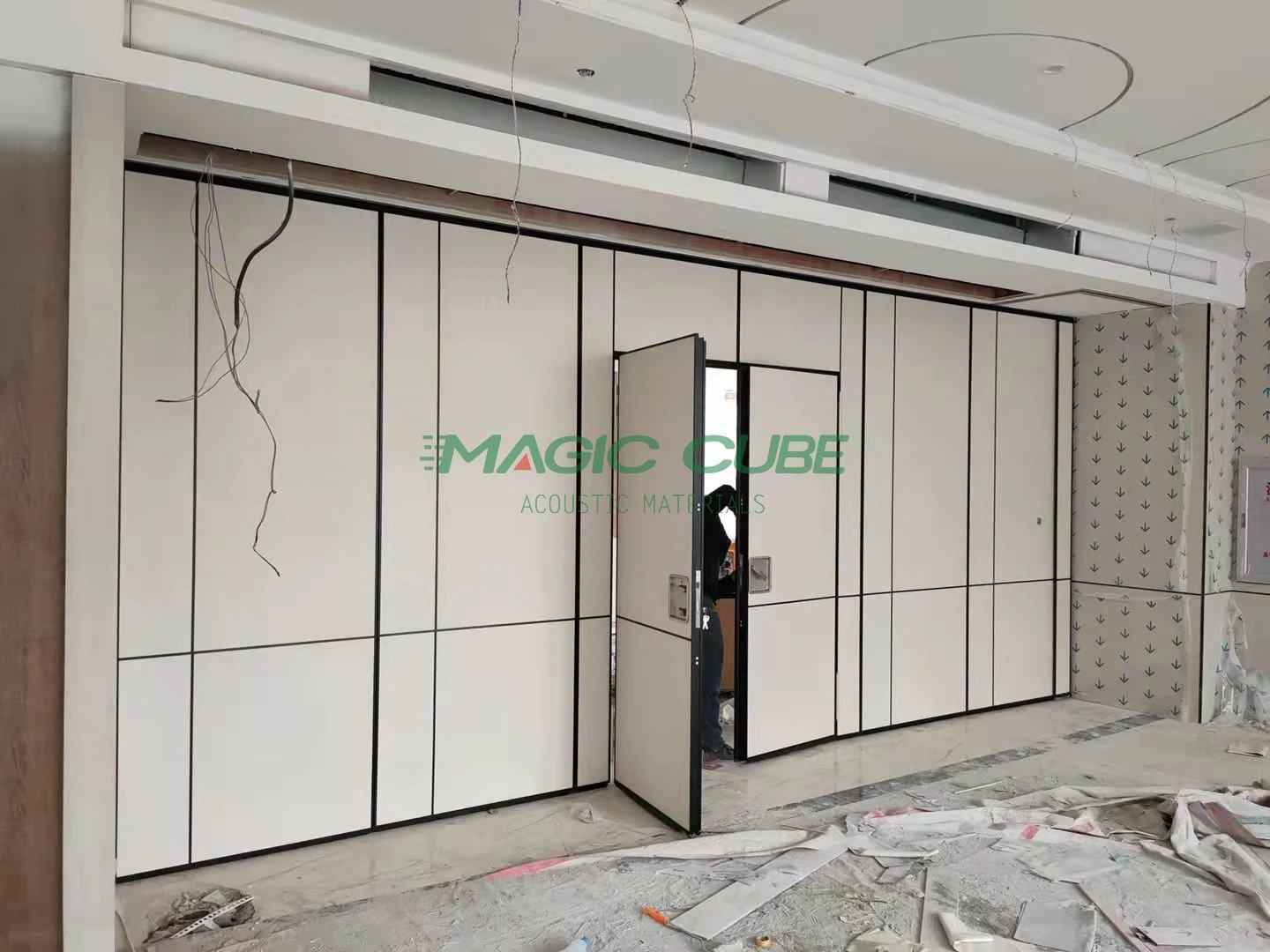

Applications

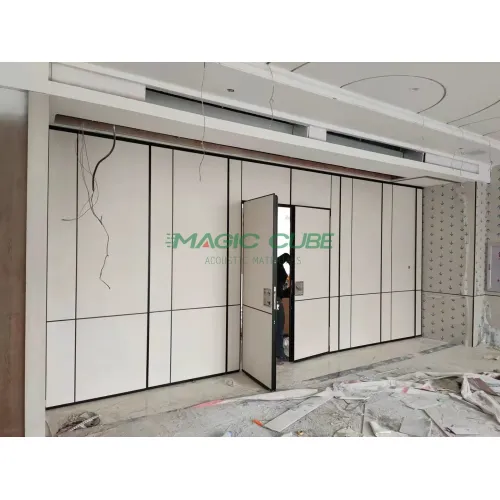

partition movable wall Installation Precautions

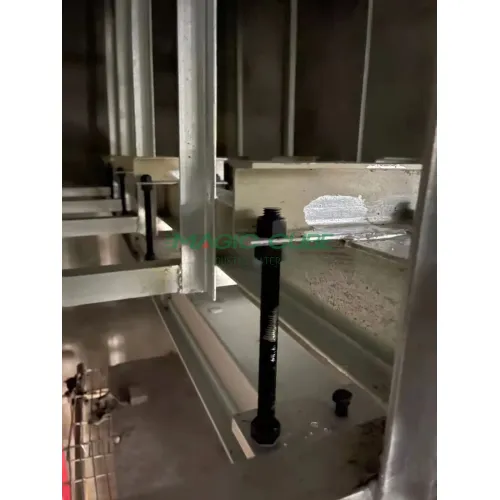

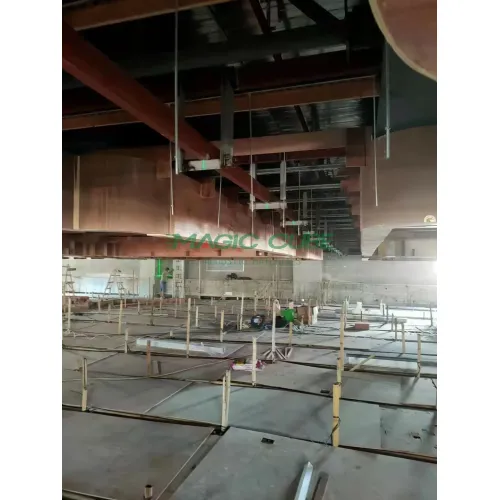

There are two kinds of track options for partition movable wall, one is a suspended track, and the other is a supporting track. The guide block used in the suspended track is called the suspension guide, and its fixing method is to install the pulley on the top surface of the partition fan, which is connected with the suspended track above. The size of the track and pulley must be selected according to the weight that can be carried. Light Movable Partition Wall, the track is fixed on the wooden frame or steel frame along the top with wood screws or counterscrew. For heavy-duty movable partition walls, the track must be screwed or welded directly to the steel frame. The support guide of the support track is installed at the lower part of the partition, and forms the lower support point with the ground track. The track is fixed with expansion bolts and track embedded parts, and guide rails are also installed on the wooden frame along the top. The interaction force of the upper part and the lower part balances the load pressure brought by the movable partition wall to the ground and ceiling steel frame, so that the movable partition wall can enhance the durability.

Matters needing attention when installing the track: First, according to the specific conditions of the track, install the pulley or track in advance, and reserve the opening (usually 1/2 of the partition against the wall).
