Acoustic Wooden soundproof movable wall
  • Acoustic Wooden soundproof movable wall
  • Acoustic Wooden soundproof movable wall
  • Acoustic Wooden soundproof movable wall
  • Acoustic Wooden soundproof movable wall
  • Acoustic Wooden soundproof movable wall
  • Acoustic Wooden soundproof movable wall

Acoustic Wooden soundproof movable wall

$89.99 - 129.99 /Square Meter
Payment Type:
T/T
Incoterm:
FOB,CIF,EXW
Min. Order:
20 Square Meter
Transportation:
Ocean
Port:
SHENZHEN,GUANGZHOU
Share:
  • Product Description
< >
Overview
Product Attributes

Model No.: MQ-PARTITION

Brand: MAGIC CUBE

Warranty Service: 5 Years

After-sales Service: Online Technical Support, Return And Replacement

Engineering Solution Capability: Total Solution For Projects

Application Scenario: Hotel, Gym, Hall, Mall, Office Building

Design Style: Contemporary, Scandinavian, Eclectic, Victorian, Traditional, Postmodern, Southwestern, Japanese, Modern, Mediterranean, Craftsman, Chinese, Minimalist, Coastal, Mid-Century Modern, French

Place Of Origin: China

Model NO.: series 85 partition walls

Material: Wooden

Thickness: 85mm

Folding: Folding Partition

Main Material: Aluminum Frame and Track

Finishing: Fabric with MDF Board

Application: Meeting Room, Conference Room

Retractable Range Of Top/Bottom Seals: 25mm

Door Panel Weight: Max 550kg/Panel

Sound Insulation (dB): 40-50dB

Supply Ability & Additional Information

Packaging: Carton Paper Packaging, MDF Batten Cover Corners

Productivity: 5000sq/Month

Transportation: Ocean

Place of Origin: CHINA

Supply Ability: 5000sq/Month

Certificate: CE

HS Code: 76101000

Port: SHENZHEN,GUANGZHOU

Payment Type: T/T

Incoterm: FOB,CIF,EXW

Packaging & Delivery
Selling Units:
Square Meter
Package Type:
Carton Paper Packaging, MDF Batten Cover Corners
Product Description

The ultra-high sliding folding partition walls can be up to 16 meters, and the ultra-high Movable Partition Wall brings a lot of convenience to people's work. The raw material of the wood board can choose MDF, melamine board and flame retardant plywood as the board. Due to the large volume of the ultra-high sliding folding partition walls, in order to avoid the damage of the partition wall door panel during transportation, it is generally difficult to install the ultra-high movable partition wall by splicing it on site.


Specifications

Type 65 type, 80 type, 100 type, ultra high 100 type.
Finish melamine MDF panel, fireproof PVC board, fabric(leather) wrapped MDF panel, fabric(leather) wrapped fiberglass panel
Density  28~32kg/m²
STC 40db-50db
Dimensions width 700~1200mm, height 2000~5200mm, thickness 80~110mm, rail load 450kg
Structure 25mm PAR fiberglass panel(24kg/m2 ) , 9mm base panel, 6063-T6 aluminum sectional material, durable NBR modified rubber for sealing



Product Structure


Automatic Room Dividers Sliding Partition Dividers Walls Movable Panel Room Divider for Hall
Automatic Room Dividers Sliding Partition Dividers Walls Movable Panel Room Divider for Hall



Panel Suspension  Top hunge system without the need for a floor track.
Panel Width Each panel 600mm-1200mm.
Track Aluminum OR Steel Track
Roller on panel Single or double  roller.
Panel Frames  Heavy-duty steel-gusseted aluminum inner frames reinforced with  full height.
Top&bottm seals Top and bottom pressure retractable seals ensure effortless moved and locked.
Module 700mm - 1200mm maximum.
Panel stacking Numerous panel stacking options for complete flexibility.
Panel face  MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard




Automatic Room Dividers Sliding Partition Dividers Walls Movable Panel Room Divider for Hall

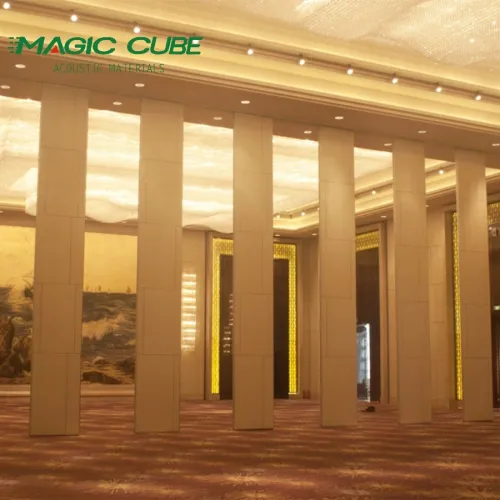

Ultra high 100 type

    Ultra-high office moveable walls are designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type office moveable walls is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high partition can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.

Features

  • Load bearing of each meter is more than 2000 KGS
  • Each pulley bearing more than 1500 KGS
  • Easily moved even being pushed at waist-high
  • The panel can make a turn automatically as sliding in the straight rail


Automatic Room Dividers Sliding Partition Dividers Walls Movable Panel Room Divider for Hall

Automatic Room Dividers Sliding Partition Dividers Walls Movable Panel Room Divider for Hall

Stacking Ways

Automatic Room Dividers Sliding Partition Dividers Walls Movable Panel Room Divider for HallApplications

Automatic Room Dividers Sliding Partition Dividers Walls Movable Panel Room Divider for Hall
Automatic Room Dividers Sliding Partition Dividers Walls Movable Panel Room Divider for Hall
Automatic Room Dividers Sliding Partition Dividers Walls Movable Panel Room Divider for Hall
Automatic Room Dividers Sliding Partition Dividers Walls Movable Panel Room Divider for Hall


Automatic Room Dividers Sliding Partition Dividers Walls Movable Panel Room Divider for Hall

Speaking of the soundproof movable panels, this kind of equipment is a slat of the partition wall when the building is constructed. This kind of material usually uses some buildings of the manufacturing industry or the soundproof movable panels as the material. This material is very light to use on the building. This material is very recognized by the state, and it has many benefits, especially moisture-proof, the biggest advantage of fire prevention, will not spread the fire. This equipment is very environmentally friendly. Next, let's take a look at the next partition board manufacturer .


Materials for partition wall panels

1. The partition wall panel is divided into different types of equipment, and the other is the lightweight cement foam sandwich panel. It is a combination of advantages in the decoration equipment, and it is very popular among construction companies when it comes to the market. The insulation is very well done, and the use of this building material in a particularly cold place is very significant, not to mention it in our normal place. The construction is quite convenient. Soundproofing and waterproofing is nationally recognized. The main point is that it is also shockproof, even if there is a tremor, it will not cause harm to people.


2. The second material is a polystyrene particle sandwich panel. Compared with other materials, this material is surprisingly better than other ordinary materials. In the moisture-proof and waterproof, the effect is more obvious in the place of damp. This kind of material insulation makes people feel that the master is a relatively smooth effect. And it can help us save some of our expenses in the economy.


3. The third type is that the pulverized coal will be light wallboard. This material can be said to be very light and light enough to float in the water. And the effect of insulation is very good. It also prevents water from penetrating. High fire resistance, this material will not burn. Plus it has the best Sound Insulation. Because it has so many advantages to gather together, it is more convenient for you to use this material than ordinary ones. This product is very environmentally friendly.


4, the fourth GM board, this kind of board is absolutely not burning at all, whether you are to be eye-catching, or the transformation of hydropower should be much more convenient.



5. The last one is a ceramic sound insulation fire board. This material is very convenient, environmentally friendly and does not cause deformation. There are no materials that hurt people, such as formaldehyde, or radiation, and the damage of heavy metals. These are not there. Even when it is burning, it will not release the poison that the tree is harmful to humans.


The above makes Xiaobian introduce to you, what are the manufacturers of partition wall panels and the types of partition wall manufacturers. If you want to know what kind of friends are there, you can refer to Xiaobian for your introduction and hope to help everyone. If you want to know more about home improvement information, please continue to pay attention to the decoration home network.
