Hotel Operable acoustic sliding folding partition

$89.99 - 129.99 /Square Meter
Sound-absorbing board varieties:
Share:
  • Product Description
Overview
Product Attributes

Model No.MQ-PARTITION

BrandMAGIC CUBE

Warranty Service5 Years

After-sales ServiceOnline Technical Support, Return And Replacement, Other

Engineering Solution CapabilityTotal Solution For Projects, Others

Application ScenarioHotel, Office Building, Home Office, Workshop, Gym, Hall, Mall

Design StyleContemporary, Scandinavian, Eclectic, Victorian, Traditional, Postmodern, Southwestern, Japanese, Modern, Mediterranean, Craftsman, Chinese, Minimalist, Coastal, Mid-Century Modern, French, Industrial, Rustic, Transitional, Midcentury, European, Tropical, Farmhouse, Asian

Place Of OriginChina

Model NO.Movable Partitions

TypeMelamine MDF Panel, Fireproof PVC Board, Fabric

ApplicationOffice, Hotel Banquet Hall, etc.

Main MaterialAluminum Frame and Track

Soundproof MaterRock Rool , Glass Wool

Soundproof Stc40dB-50dB

DimensionsDimensions W700-1200mm, H2000-5200mm, Thickness 80-110mm

Stacking WayCentre Partiting; Side Parking

Open WaySliding Partition

Ransport PackageCarton Paper Packaging, MDF Batten Cover Corners

Supply Ability & Additional Information

Packaging Carton Paper Packaging, MDF Batten Cover Corners

Productivity5000sq/Month

TransportationOcean

Place of OriginCHINA

Supply Ability5000sq/Month

CertificateCE

HS Code76101000

PortSHENZHEN,GUZNGZHOU

Payment TypeT/T,Others

IncotermFOB,CIF,EXW

Packaging & Delivery
Selling Units:
Square Meter
Package Type:
Carton Paper Packaging, MDF Batten Cover Corners

Product Description

The Moveable Wall is a Movable Wall that divides the space into small spaces at any time as needed and has the function of a general wall. Often used in high-end and spacious hotel lobbies, the movable partition makes use of such a noble and atmospheric indoor space and becomes a hotel lobby with practical functions. Therefore, some hotel Moveable Wall spaces will be given multiple functions to meet the different gathering needs of the owner, and the space divided by the mobile activity partition wall will be used more effectively.



Specification

Type 65 type, 80 type, 100 type, ultra high 100 type.
Finish melamine MDF panel, fireproof PVC board, fabric(leather) wrapped MDF panel, fabric(leather) wrapped fiberglass panel
Density  28~32kg/m²
STC 40db-50db
Dimensions width 700~1200mm, height 2000~5200mm, thickness 80~110mm, rail load 450kg
Structure 25mm PAR fiberglass panel(24kg/m2 ) , 9mm base panel, 6063-T6 aluminum sectional material, durable NBR modified rubber for sealing



Product Structure


Electrically Operated Room Dividers Partition System Mobile Dividers Partition System for Hall or Office
Electrically Operated Room Dividers Partition System Mobile Dividers Partition System for Hall or Office



Panel Suspension  Top hunge system without the need for a floor track.
Panel Width Each panel 600mm-1200mm.
Track Aluminum OR Steel Track
Roller on panel Single or double  roller.
Panel Frames  Heavy-duty steel-gusseted aluminum inner frames reinforced with  full height.
Top&bottm seals Top and bottom pressure retractable seals ensure effortless moved and locked.
Module 700mm - 1200mm maximum.
Panel stacking Numerous panel stacking options for complete flexibility.
Panel face  MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard




Electrically Operated Room Dividers Partition System Mobile Dividers Partition System for Hall or Office

Ultra high 100 type

    Ultra-high Movable Wall ,Moveable Wall is designed for movable partition as high as 6 to 17 m with max soundproof rate 50 dB. Ultra-high type Movable Wall ,Moveable Wall is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 17 meters high partition can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.

Features

  • Load bearing of each meter is more than 2000 KGS
  • Each pulley bearing more than 1500 KGS
  • Easily moved even being pushed at waist-high
  • The panel can make a turn automatically as sliding in the straight rail


Electrically Operated Room Dividers Partition System Mobile Dividers Partition System for Hall or Office

Electrically Operated Room Dividers Partition System Mobile Dividers Partition System for Hall or Office

Stacking Ways

Electrically Operated Room Dividers Partition System Mobile Dividers Partition System for Hall or OfficeApplications

Electrically Operated Room Dividers Partition System Mobile Dividers Partition System for Hall or Office
Electrically Operated Room Dividers Partition System Mobile Dividers Partition System for Hall or Office
Electrically Operated Room Dividers Partition System Mobile Dividers Partition System for Hall or Office
Electrically Operated Room Dividers Partition System Mobile Dividers Partition System for Hall or Office


Electrically Operated Room Dividers Partition System Mobile Dividers Partition System for Hall or Office

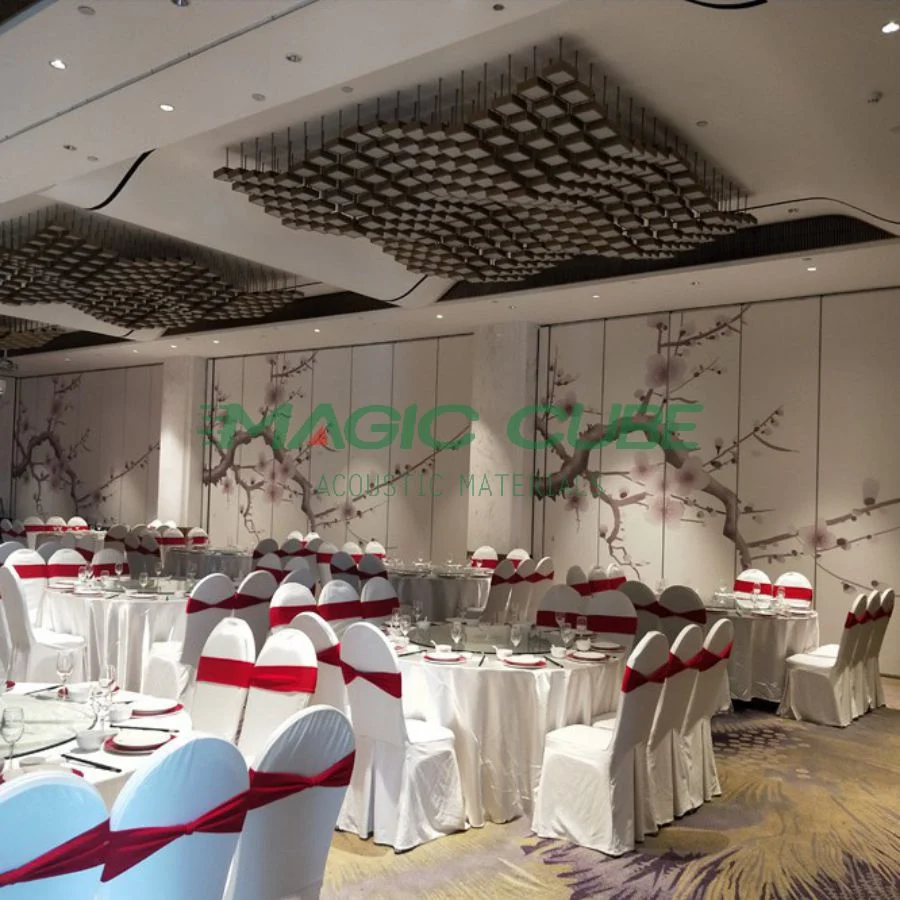

 Movable Partition Wall are just right in interior commercial design. When used in large business office buildings such as hotels, exhibition halls and banquet halls, they can not only play a role in separating space, but also improve the overall space design and grade. In the office areas such as the hotel conference room, the partitions wall are segregated in an orderly manner, and the partitions are serious and not old-fashioned. The materials can also ensure the characteristics of heat resistance and high Sound Insulation coefficient. The beautiful and fashionable appearance adds a lot to the overall environment of the hotel.



What kind of partition wall can be called a super high partition?

Ultra-high type (standard height 9m-18m) can be called ultra-high partition, which is a movable partition wall system often used in many high-star hotels. Space, to achieve the effect of multiple uses in one hall without interfering with each other.

1. Installation track

Suspended track: The fixed way of the suspended guide is to install a pulley on the top surface of the partition door panel, which is connected to the track suspended from the ceiling. The type of track and pulley should be selected according to the size of the bearing weight. For heavy-duty Movable Partition Wall, the rails are screwed or welded to the steel frame.

According to the specific weight of the track and the partition fan, install the pulley in advance and reserve the opening of the track.

2. Install the movable panel



According to the installation method, accurately draw the pulley line on each panel, and then fix the fixing frame of the pulley on the upper or lower stile of the partition fan with screws; then put the panels into the track one by one, and adjust each panel to be perpendicular to the The ground, and the push-pull rotation is flexible, and finally each fan is connected and fixed. Usually, the adjacent panels are connected by hinges

3. Install movable partition door panels

Mark the pulley placement line on each partition door panel, and then fix the pulley's fixing frame on the upper or lower column of the partition fan with screws; The condition of each door panel, make them perpendicular to the ground, after ensuring that they can be pushed flexibly, connect and fix each door panel, and connect the adjacent panels with hinges.
